Roof trim-headlining moulded/handle for BMW 7 Series E32 730i (1994)

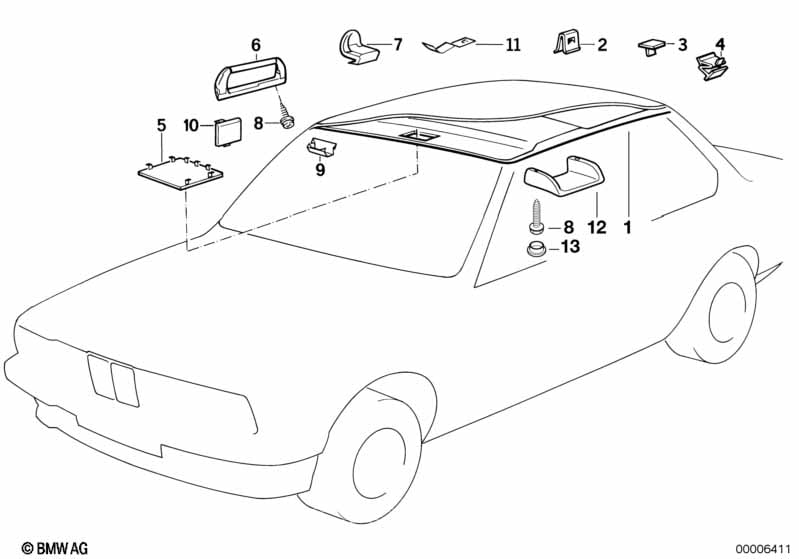

This Roof trim-headlining moulded/handle technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan and Lift-up-and-slide-back sunroof, electric and Infrared remote control |
L807A=Yes =Yes =Yes |
|||||||||
| 04 | Cover sliding roof motor | SILBERGRAU | 1 | 09/1990 | 51448139387 | $28.67 | ENDED | Shop at ECS Tuning | ||
| 04 | Cover sliding roof motor | PERGAMENT | 1 | 09/1990 | 51448139388 | $28.67 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | Handle | SILBERGRAU | 4 | 51168177638 | $38.23 | ENDED | Shop at ECS Tuning | |||
| 07 | Hook | SILBERGRAU | 2 | 09/1990 | 51168127471 | $0.68 | ENDED | Shop at ECS Tuning | ||
| 07 | Hook | PERGAMENT | 2 | 09/1990 | 51168127472 | $0.68 | ENDED | Shop at ECS Tuning | ||
| 08 | Fillister head self-tapping screw | ISA ST4.2X13 | 8 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Clamp | 8 | 51448181426 | $0.61 | Shop at ECS Tuning | |||||
| 11 | Holder | 2 | 51441964250 | $1.13 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
