Roof trim-headlining/handle for BMW 7 Series E23 735i (1985)

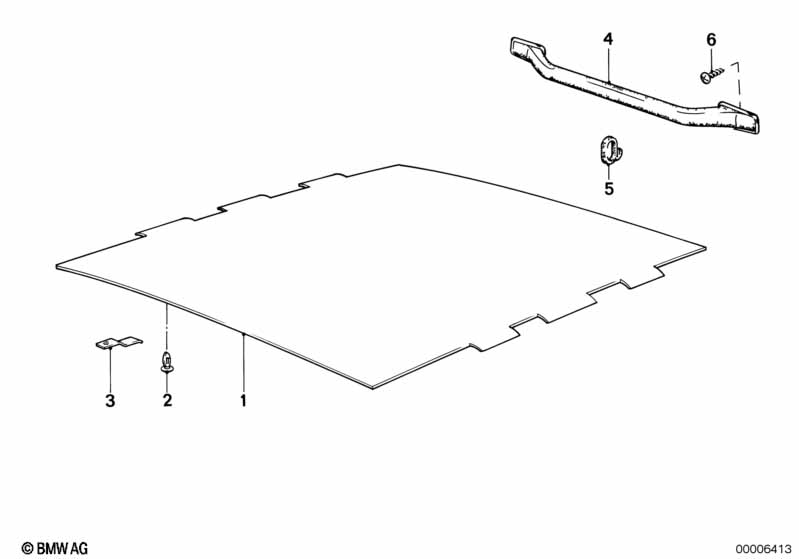

This Roof trim-headlining/handle technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headliner, sunroof | BEIGE | 1 | 01/1983 | 51442908572 | Shop at ECS Tuning | ||||
| 01 | Headliner, sunroof | GREY | 1 | 01/1983 | 51442908573 | Shop at ECS Tuning | ||||
| 01 | Headlining | BEIGE | 1 | 01/1983 | 51442908583 | Shop at ECS Tuning | ||||
| 01 | Headlining | GREY | 1 | 01/1983 | 51442908584 | Shop at ECS Tuning | ||||
| 02 | Plug | X | 51441854624 | $0.39 | Shop at ECS Tuning | |||||
| 03 | Holder | 2 | 51441857232 | $1.71 | ENDED | Shop at ECS Tuning | ||||
| 04 | Handle | X | 51161848998 | $44.08 | ENDED | Shop at ECS Tuning | ||||
| 05 | Clothes hook | 2 | 51161900310 | $3.29 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST4,8X19 | X | 07119907790 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Roof trim-headlining/handle?
- This technical diagram illustrates the Roof trim-headlining/handle within the Vehicle trim group for the 7 Series E23 735i produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Headliner, sunroof (Part #51442908572).
- Which models use the hardware listed in this Roof trim-headlining/handle?
- The hardware and components featured in the Roof trim-headlining/handle are specific to the 7 Series E23 735i produced during 1985. These technical specifications ensure that parts like the Headliner, sunroof (51442908572) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof trim-headlining/handle assembly?
- Each item in the Roof trim-headlining/handle corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Headliner, sunroof by locating its position on the schematic, which then links to the official BMW part number 51442908572 for the Vehicle trim section.
