Roof trim-headlining/handle for BMW 5 Series E28 M535i (1987)

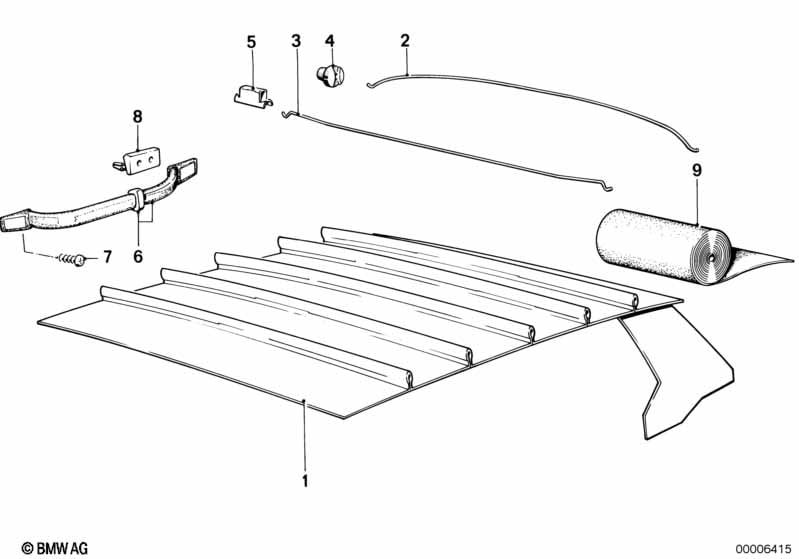

This Roof trim-headlining/handle technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headlining | GRAU | 1 | 09/1982 | 51441915815 | $122.77 | ENDED | Shop at ECS Tuning | ||
| 01 | Headliner, sunroof | GRAU | 1 | 09/1982 | 51441915821 | $171.86 | ENDED | Shop at ECS Tuning | ||
| 02 | Wire-strap | 4 | 51441920784 | $5.19 | Shop at ECS Tuning | |||||
| 03 | Wire-strap sliding lifting roof | 1 | 51441848080 | ENDED | Shop at ECS Tuning | |||||
| 04 | Grommet | X | 51441913099 | $0.87 | Shop at ECS Tuning | |||||
| 06 | Handle | 3 | 51161888099 | $21.28 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST4,8X16-C-Z1 | X | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST4,8X16-C-Z1 | X | 07119906265 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 07 | Hex head screw | ST4,8X19-C-Z2 | X | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Base | 6 | 51161807239 | $8.96 | Shop at ECS Tuning | |||||
| 09 | Headlining | B=1500MM QUARZ | X | 09/1987 | 51951967654 | $60.97 | ENDED | Shop at ECS Tuning | ||
| 09 | Headlining | B=1500MM QUARZ | X | 09/1987 | 51951967654 | $60.97 | ENDED | Shop at ECS Tuning | ||
| 09 | Headlining | B=1500MM QUARZ | X | 09/1987 | 51951967654 | $60.97 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Roof trim-headlining/handle?
- This technical diagram illustrates the Roof trim-headlining/handle within the Vehicle trim group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Headlining (Part #51441915815).
- Which models use the hardware listed in this Roof trim-headlining/handle?
- The hardware and components featured in the Roof trim-headlining/handle are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Headlining (51441915815) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof trim-headlining/handle assembly?
- Each item in the Roof trim-headlining/handle corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Headlining by locating its position on the schematic, which then links to the official BMW part number 51441915815 for the Vehicle trim section.
