Roof trim-headlining moulded/handle for BMW 3 Series E30 325i (1989)

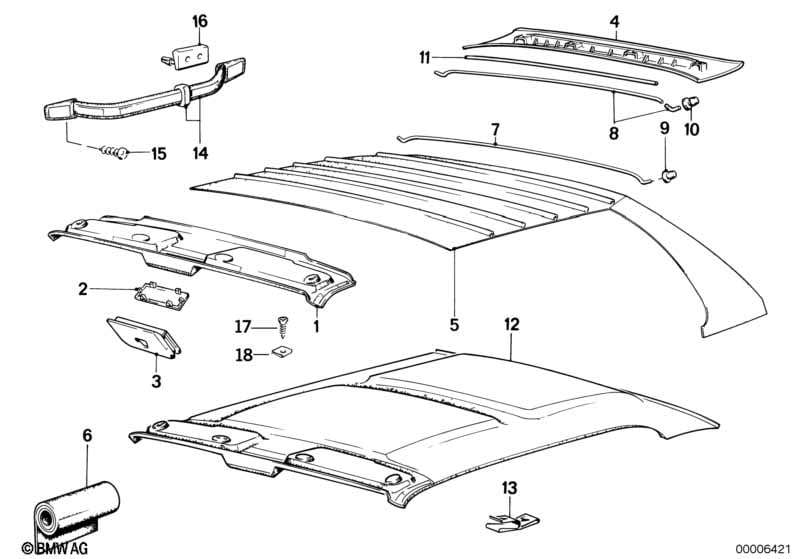

This Roof trim-headlining moulded/handle technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front headlining cover | 1 | 51441884195 | $114.30 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof, electric |
=Yes |
|||||||||
| 01 | Front headlining cover | 1 | 51441884197 | $176.33 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sliding lifting roof manual |
=Yes |
|||||||||
| 01 | Front headlining cover | 1 | 51441884196 | $117.04 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof, electric |
=Yes |
|||||||||
| 02 | Cover sliding roof motor | ANTHRAZIT | 1 | 51441864536 | $8.38 | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 51441900133 | $3.61 | Shop at ECS Tuning | |||||
| 05 | Headliner, sunroof | QUARZ | 1 | 09/1987 | 51441976561 | $155.12 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO EDITION | ||||||||||
| 05 | Headliner, sunroof cloth | QUARZ | 1 | 51441976563 | ENDED | Shop at ECS Tuning | ||||
| 05 | Headlining cloth | QUARZ | 1 | 51441979113 | $212.22 | ENDED | Shop at ECS Tuning | |||
| 06 | Headlining | B=1500MM QUARZ | X | 09/1987 | 51951967654 | $60.97 | ENDED | Shop at ECS Tuning | ||
| 07 | Wire-strap sliding lifting roof | 1 | 54121904657 | $5.08 | ENDED | Shop at ECS Tuning | ||||
| 08 | Wire-strap rear | 1 | 51441916040 | $5.08 | ENDED | Shop at ECS Tuning | ||||
| 09 | Grommet | 6 | 51441913099 | $0.87 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO WIRE-STRAP REAR |
||||||||||
| 10 | Grommet | 2 | 51441916081 | $2.76 | Shop at ECS Tuning | |||||
| 14 | Handle | 3 | 51161888099 | $21.28 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 16 | Base | 6 | 51161807239 | $8.96 | Shop at ECS Tuning | |||||
| 17 | Csk.lenshead screw | ST3,9X28 | 2 | 07119907931 | ENDED | Shop at ECS Tuning | ||||
| 18 | Body nut | B3,9 | 2 | 51131914097 | $1.03 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
