Rear window shelf for BMW 6 Series E24 633CSi (1979)

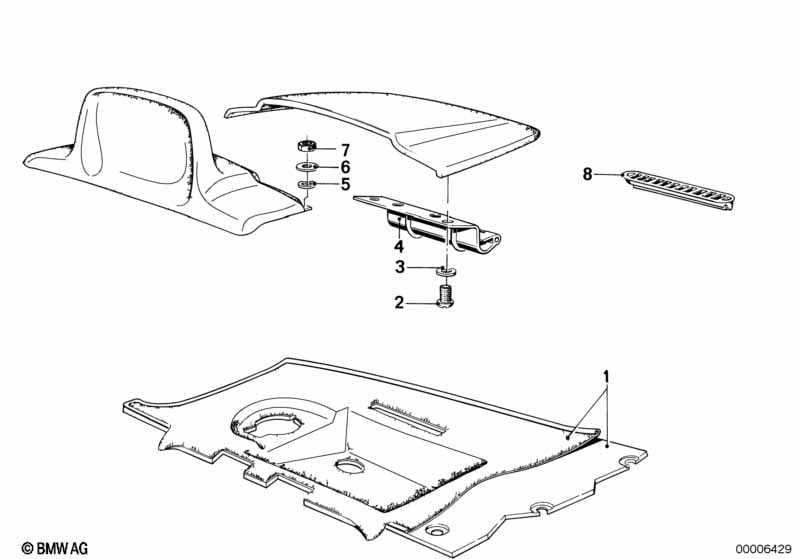

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window shelf | SCHWARZ | 1 | 51461868012 | $256.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Fillister head screw | M5X8 | 8 | 07119907623 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B5 | 8 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hinge | 2 | 51461843545 | $10.94 | ENDED | Shop at ECS Tuning | ||||
| 05 | Spring washer | B8 | 4 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Washer | 8,4X24X2-ZNS3 | 4 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNS3 | 4 | 04/1989 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 07 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Non return flap | 8 | 54121861004 | $106.86 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
