Roof trim/running metre for BMW 5 Series E12 528i (1979)

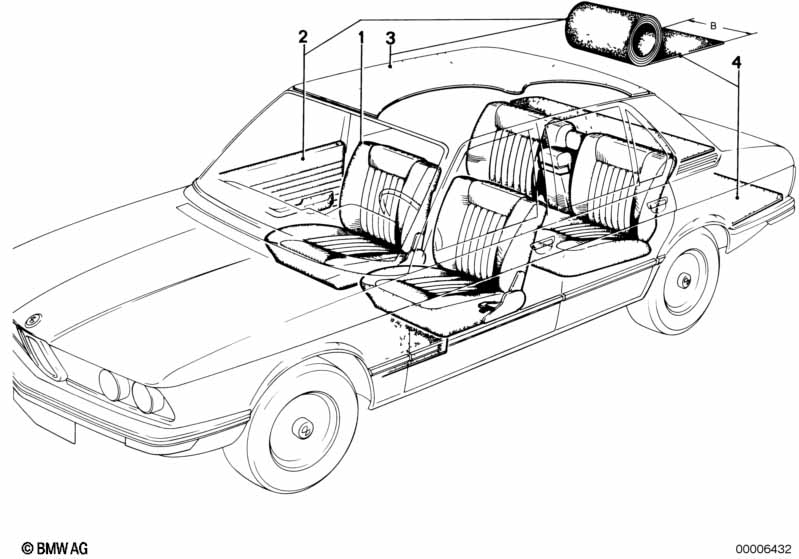

This Roof trim/running metre technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Synthetic strip | MARINEBLAU | X | 51921900768 | $0.77 | Shop at ECS Tuning | ||||
| 01 | Synthetic strip | NYLONBRAUN | X | 51921900769 | $1.12 | Shop at ECS Tuning | ||||
| 01 | Synthetic strip | HELLGRAU | X | 51921900770 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Synthetic strip | FARNGRUEN | X | 51921900771 | $1.40 | ENDED | Shop at ECS Tuning | |||
| 01 | Synthetic strip | SCHWARZ | X | 51941937533 | $1.17 | Shop at ECS Tuning | ||||
| 02 | Trimming foil | B=1520MM | X | 51951924961 | $40.98 | Shop at ECS Tuning | ||||
| 03 | Headlining | B=1350MM | X | 09/1977 | 51951817302 | $48.76 | Shop at ECS Tuning | |||
| 03 | Headlining | B=1250MM | X | 09/1977 | 51951856945 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528i Roof trim/running metre?
- This technical diagram illustrates the Roof trim/running metre within the Vehicle trim group for the 5 Series E12 528i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Synthetic strip (Part #51921900768).
- Which models use the hardware listed in this Roof trim/running metre?
- The hardware and components featured in the Roof trim/running metre are specific to the 5 Series E12 528i produced during 1979. These technical specifications ensure that parts like the Synthetic strip (51921900768) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof trim/running metre assembly?
- Each item in the Roof trim/running metre corresponds to the numbered list below the illustration. For the 5 Series E12 528i, you can identify the Synthetic strip by locating its position on the schematic, which then links to the official BMW part number 51921900768 for the Vehicle trim section.
