Trim panel leg room for BMW 7 Series E23 733i (1984)

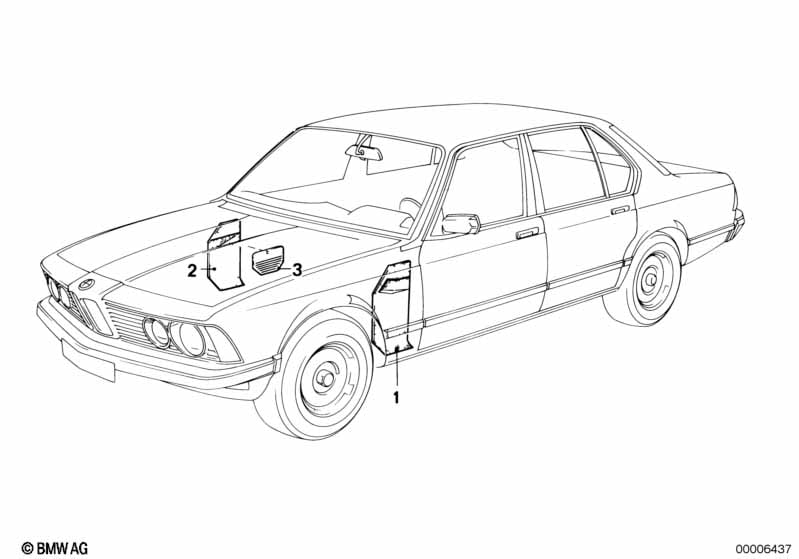

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel front left | ANTHRAZIT | 1 | 01/1981 | 51431886325 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front left | PACIFIC | 1 | 01/1981 | 51431886327 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front left | MOCCA | 1 | 01/1981 | 51431886329 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front left | PERGAMENT | 1 | 01/1981 | 51431886331 | ENDED | Shop at ECS Tuning | |||
| 02 | Lateral trim panel front right | ANTHRAZIT | 1 | 01/1981 | 51431886326 | ENDED | Shop at ECS Tuning | |||
| 02 | Lateral trim panel front right | PACIFIC | 1 | 01/1981 | 51431886328 | ENDED | Shop at ECS Tuning | |||
| 02 | Lateral trim panel front right | MOCCA | 1 | 01/1981 | 51431886330 | ENDED | Shop at ECS Tuning | |||
| 02 | Lateral trim panel front right | PERGAMENT | 1 | 01/1981 | 51431886332 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover loudspeaker left | ANTHRAZIT | 1 | 01/1983 | 51431903929 | $43.52 | Shop at ECS Tuning | |||
| 03 | Cover loudspeaker right | ANTHRAZIT | 1 | 01/1983 | 51431903930 | $43.52 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker left | PACIFIC | 1 | 01/1983 | 51431903931 | $39.34 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker right | PACIFIC | 1 | 01/1983 | 51431903932 | $39.34 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker left | NUTRIA | 1 | 01/1983 | 51431903933 | $39.34 | Shop at ECS Tuning | |||
| 03 | Cover loudspeaker right | NUTRIA | 1 | 01/1983 | 51431903934 | $39.34 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker left | PERLBEIGE | 1 | 01/1983 | 51431903935 | $43.52 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker right | PERLBEIGE | 1 | 01/1983 | 51431903936 | $43.52 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Trim panel leg room?
- This technical diagram illustrates the Trim panel leg room within the Vehicle trim group for the 7 Series E23 733i produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Lateral trim panel front left (Part #51431886325).
- Which models use the hardware listed in this Trim panel leg room?
- The hardware and components featured in the Trim panel leg room are specific to the 7 Series E23 733i produced during 1984. These technical specifications ensure that parts like the Lateral trim panel front left (51431886325) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel leg room assembly?
- Each item in the Trim panel leg room corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Lateral trim panel front left by locating its position on the schematic, which then links to the official BMW part number 51431886325 for the Vehicle trim section.
