Sealing cap/plug for BMW 3 Series E21 320i (1978)

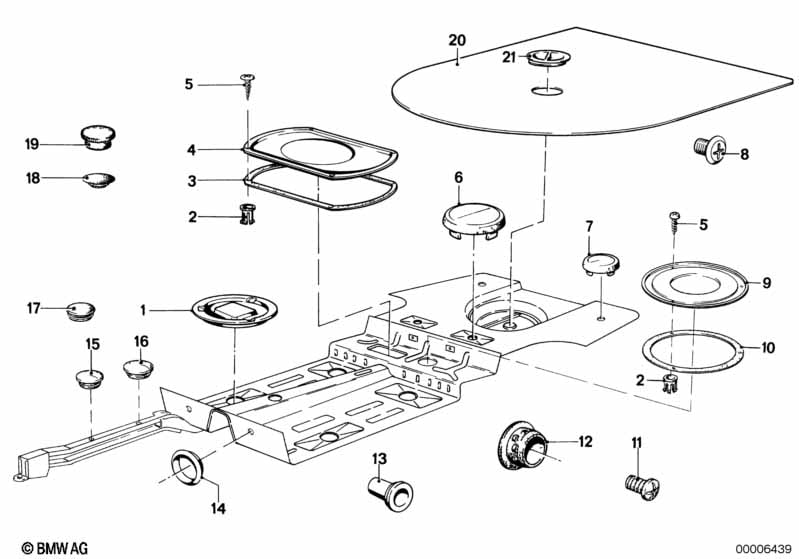

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover lid | D=144MM | 5 | 41128200462 | $5.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover lid | D=105MM | 5 | 51711946184 | $1.77 | ENDED | Shop at ECS Tuning | |||
| 02 | Expanding nut | 3,9 | 7 | 51135680113 | $0.28 | Shop at ECS Tuning | ||||
| 02 | Expanding nut | ST 3.9 | 7 | 51711874203 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Gasket | 1 | 51711834905 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cover lid | 1 | 51711834904 | $3.29 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,2X9,5-Z1 | 7 | 07119907812 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Paint plugs with hot-melt adhesive ring | D=35MM | X | 12/1983 | 41007140847 | $0.68 | ENDED | Shop at ECS Tuning | ||
| 06 | Paint plug | D=35MM | X | 51915A0C2C4 | Shop at ECS Tuning | |||||
| 07 | Paint plugs with hot-melt adhesive ring | D=20MM | X | 41007140848 | $0.43 | Shop at ECS Tuning | ||||
| 08 | Screw plug | 7/16"X14 | 2 | 51711822930 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cover lid | D=176MM | 1 | 51711816654 | $27.76 | ENDED | Shop at ECS Tuning | |||
| 10 | Gasket | D=182MM | 1 | 51711820957 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 11 | Screw plug | 7/16" | 2 | 51711822900 | $0.46 | Shop at ECS Tuning | ||||
| 12 | Blind plug | D=20MM | 8 | 51711801066 | $0.23 | Shop at ECS Tuning | ||||
| 13 | Protective plug | 4 | 17114670114 | $0.26 | Shop at ECS Tuning | |||||
| 14 | Blind plug | D=13MM | 1 | 61138560584 | $4.34 | Shop at ECS Tuning | ||||
| 15 | Blind plug | 2 | 51711889789 | $1.12 | Shop at ECS Tuning | |||||
| 16 | Blind plug | 2 | 51711889786 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 17 | Blind plug | D=11MM | 1 | 41516442164 | $0.30 | Shop at ECS Tuning | ||||
| 18 | Blind plug | D=22MM | 2 | 51711855009 | $0.50 | Shop at ECS Tuning | ||||
| 19 | Covering cap | D=16,5MM | 2 | 51711839321 | $0.26 | Shop at ECS Tuning | ||||
| 20 | Cover for spare wheel | 1 | 08/1976 | 51471853017 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 21 | Lock | 1 | 08/1976 | 51471848596 | $8.36 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Sealing cap/plug?
- This technical diagram illustrates the Sealing cap/plug within the Vehicle trim group for the 3 Series E21 320i produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Cover lid (Part #41128200462).
- Which models use the hardware listed in this Sealing cap/plug?
- The hardware and components featured in the Sealing cap/plug are specific to the 3 Series E21 320i produced during 1978. These technical specifications ensure that parts like the Cover lid (41128200462) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sealing cap/plug assembly?
- Each item in the Sealing cap/plug corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Cover lid by locating its position on the schematic, which then links to the official BMW part number 41128200462 for the Vehicle trim section.
