Trunk trim panel for BMW 7 Series E32 750iL (1993)

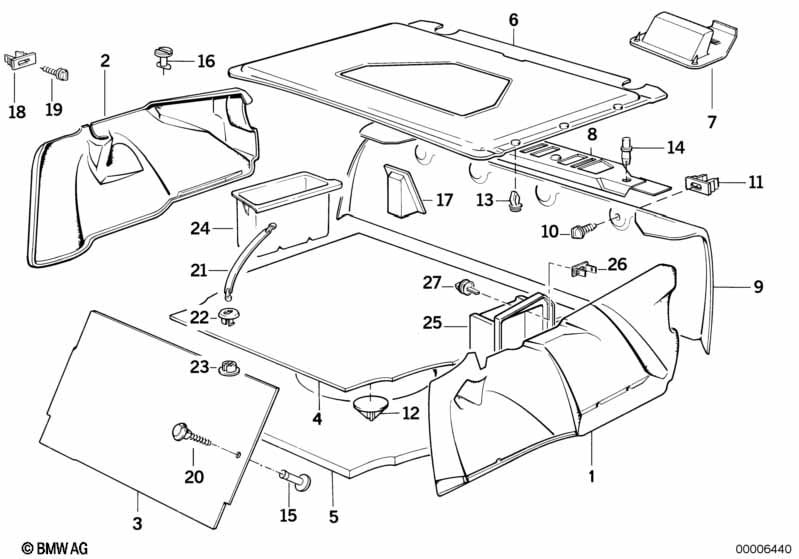

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel wheel housing part.trunk left | MITTELGRAU | 1 | 01/1989 | 51478111425 | $174.98 | Shop at ECS Tuning | |||
| For vehicles with All leather equipment |
=Yes |
|||||||||
| 01 | Panel wheel housing part.trunk left | SCHIEFER | 1 | 01/1989 | 51478111429 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 02 | Panel wheel housing part.trunk right | MITTELGRAU | 1 | 51478115866 | $174.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with All leather equipment |
=Yes |
|||||||||
| 02 | Panel wheel housing part.trunk right | SCHIEFER | 1 | 12/1991 | 51478115890 | $257.61 | ENDED | Shop at ECS Tuning | ||
| 03 | Trunk partition trim panel | MITTELGRAU | 1 | 01/1989 | 51478113919 | $114.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with All leather equipment |
=Yes |
|||||||||
| 03 | Trunk partition trim panel | SCHIEFER | 1 | 01/1989 | 51478111453 | $140.62 | ENDED | Shop at ECS Tuning | ||
| 04 | Trunk mat with tension straps | MITTELGRAU | 1 | 51478172315 | $234.36 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 04 | Trunk mat with tension straps | MITTELGRAU | 1 | 51478172315 | $234.36 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version ONLY APPLIES TO TIRE 240/45 |
=Yes |
|||||||||
| 04 | Trunk mat with tension straps | MITTELGRAU | 1 | 51478172315 | $234.36 | ENDED | Shop at ECS Tuning | |||
| For vehicles with CD Changer ONLY APPLIES TO C-SYSTEM |
=Yes |
|||||||||
| 04 | Trunk mat | SCHIEFER | 1 | 09/1989 | 51478111445 | $329.22 | ENDED | Shop at ECS Tuning | ||
| 04 | Trunk mat | ULTRAMARIN | 1 | 01/1991 | 51478140085 | ENDED | Shop at ECS Tuning | |||
| 04 | Trunk mat | PERGAMRENT | 1 | 01/1991 | 51478140086 | $329.22 | ENDED | Shop at ECS Tuning | ||
| For vehicles with All leather equipment |
=Yes |
|||||||||
| 04 | Trunk mat | SCHIEFER | 1 | 51471969808 | $329.22 | ENDED | Shop at ECS Tuning | |||
| For vehicles with All leather equipment ONLY APPLIES TO TIRE 240/45 |
=Yes |
|||||||||
| 04 | Trunk mat | SCHIEFER | 1 | 01/1989 | 51478111445 | $329.22 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO TIRE 240/45 | ||||||||||
| 05 | Spacer | 1 | 01/1989 | 51481969811 | $103.86 | Shop at ECS Tuning | ||||
| 06 | Trunk lid trim panel | MITTELGRAU | 1 | 01/1991 | 51498114502 | $81.64 | Shop at ECS Tuning | |||
| For vehicles with All leather equipment |
=Yes |
|||||||||
| 06 | Trunk lid trim panel | SCHIEFER | 1 | 01/1991 | 51498113975 | ENDED | Shop at ECS Tuning | |||
| 06 | Trunk lid trim panel | ULTRAMARIN | 1 | 01/1991 | 51498141788 | $218.74 | ENDED | Shop at ECS Tuning | ||
| 06 | Trunk lid trim panel | PERGAMENT | 1 | 01/1991 | 51498141789 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle | 1 | 51498114501 | $5.78 | Shop at ECS Tuning | |||||
| 08 | Covering support tail panel | 1 | 51471928159 | $35.75 | Shop at ECS Tuning | |||||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 09 | Tail trim panel | MITTELGRAU | 1 | 51471928146 | $163.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with All leather equipment |
=Yes |
|||||||||
| 09 | Tail trim panel | SCHIEFER | 1 | 51471954709 | $197.63 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Trailer coupling and Cloth version |
=Yes =Yes |
|||||||||
| 09 | Tail trim panel | MITTELGRAU | 1 | 51478114308 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling and All leather equipment |
=Yes =Yes |
|||||||||
| 09 | Tail trim panel | SCHIEFER | 1 | 06/1989 | 51478113916 | ENDED | Shop at ECS Tuning | |||
| 10 | Lock | 4 | 51711916197 | $1.35 | Shop at ECS Tuning | |||||
| 11 | Lock insert | 4 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 12 | Pad | H=14MM | 1 | 51471904726 | $1.88 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO TIRE 240/45 | ||||||||||
| 12 | Pad | H=28MM D=65MM | 1 | 51471930956 | $3.37 | Shop at ECS Tuning | ||||
| 13 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 13 | Clip, black | X | 51498123832 | $0.29 | Shop at ECS Tuning | |||||
| 14 | Expanding rivet | 4 | 51481905599 | $0.77 | Shop at ECS Tuning | |||||
| 15 | Push-button | SCHIEFER | 4 | 51471954694 | $1.37 | Shop at ECS Tuning | ||||
| 16 | Rotary latch 18 mm | ANTHRAZIT | 9 | 01/1991 | 51478127272 | $1.03 | Shop at ECS Tuning | |||
| 17 | Cover | 1 | 51491969164 | ENDED | Shop at ECS Tuning | |||||
| 19 | Pin | X | 51478126285 | $1.15 | Shop at ECS Tuning | |||||
| 20 | Pin | 4 | 51478117523 | $0.52 | Shop at ECS Tuning | |||||
| 21 | Band clamp, black | L=590 MM | 2 | 51478136450 | $6.73 | Shop at ECS Tuning | ||||
| 22 | Mount, retaining strap upper section | SCHIEFER | 4 | 51478136258 | $0.73 | Shop at ECS Tuning | ||||
| 23 | Mount, retaining strap lower section | SCHIEFER | 4 | 51478136257 | $0.73 | Shop at ECS Tuning | ||||
| 24 | Insert | 1 | 51478115867 | $19.57 | ENDED | Shop at ECS Tuning | ||||
