Trunk trim panel for BMW 5 Series E12 528i (1981)

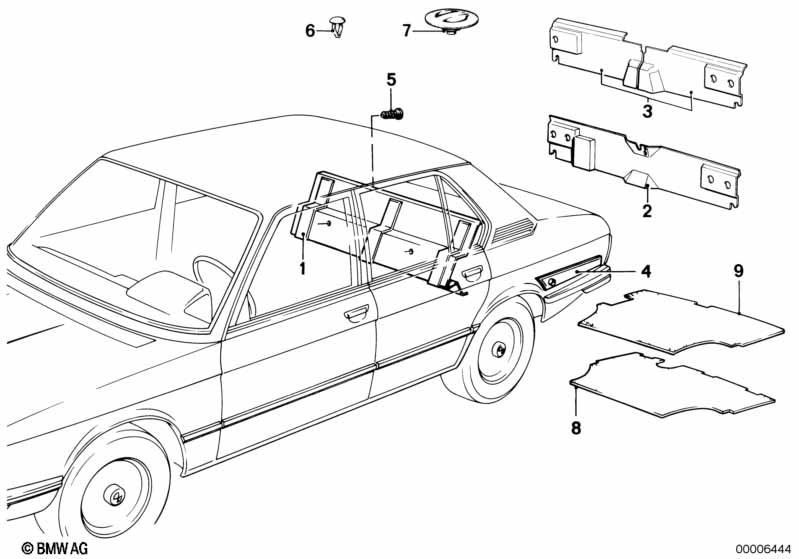

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk partition trim panel | 1 | 51461807791 | $24.55 | ENDED | Shop at ECS Tuning | ||||
| 03 | Trim tail panel left | 1 | 08/1977 | 51461879033 | $37.11 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim tail panel right | 1 | 08/1977 | 51461879034 | $37.11 | ENDED | Shop at ECS Tuning | |||
| 04 | Panel partition trunk left | 1 | 51461819481 | $39.06 | ENDED | Shop at ECS Tuning | ||||
| 05 | Plug | GRAU | 2 | 51461805542 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 2 | 08/1976 | 51461858756 | $2.24 | ENDED | Shop at ECS Tuning | |||
| 07 | Cap | 2 | 08/1976 | 51461858757 | $4.43 | Shop at ECS Tuning | ||||
| 09 | Trunk mat | 1 | 08/1976 | 51471862929 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 09 | Trunk mat | X | 51951855825 | ENDED | Shop at ECS Tuning | |||||
| 09 | Trunk mat | 1 | 08/1976 | 51471860043 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
