Trunk trim panel for BMW 7 Series E23 732i (1982)

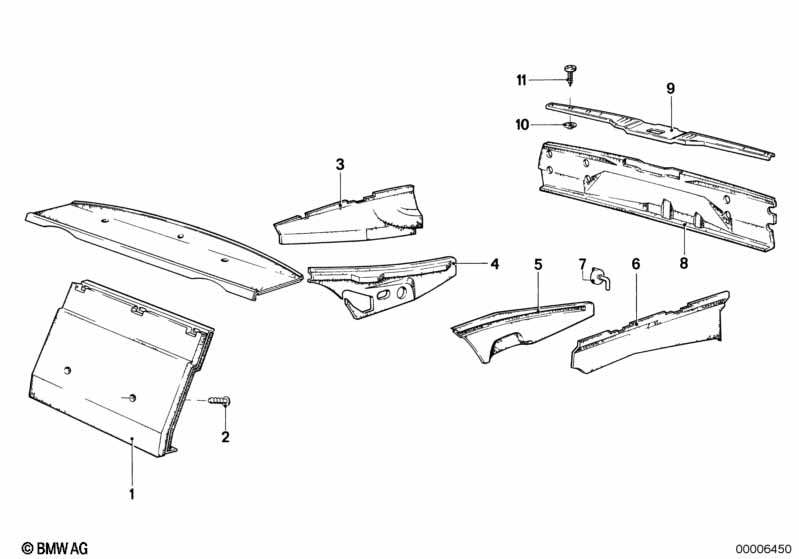

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk partition trim panel | ANTHRAZIT | 1 | 07/1981 | 51471900275 | $97.75 | ENDED | Shop at ECS Tuning | ||
| 02 | Plug | GRAU | 2 | 51461858736 | $0.28 | Shop at ECS Tuning | ||||
| 02 | Plug | SCHWARZ | 2 | 51471904317 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Panel partition trunk left | ANTHRAZIT | 1 | 07/1981 | 51471900255 | $40.02 | ENDED | Shop at ECS Tuning | ||
| 06 | Panel fender left | ANTHRAZIT | 1 | 07/1981 | 51471900257 | $60.14 | Shop at ECS Tuning | |||
| 07 | Lock | 1 | 08/1979 | 51471872820 | $0.71 | Shop at ECS Tuning | ||||
| 08 | Tail trim panel | ANTHRAZIT | 1 | 51471900260 | $117.05 | Shop at ECS Tuning | ||||
| 09 | Covering support tail panel | 1 | 51461851580 | $39.96 | Shop at ECS Tuning | |||||
| 10 | Expanding nut | 3,9 | 4 | 51135680113 | $0.28 | Shop at ECS Tuning | ||||
| 11 | Sheet metal screw | 4 | 51461866708 | $0.18 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
