Sealing cap/plug for BMW 7 Series E23 728i (1986)

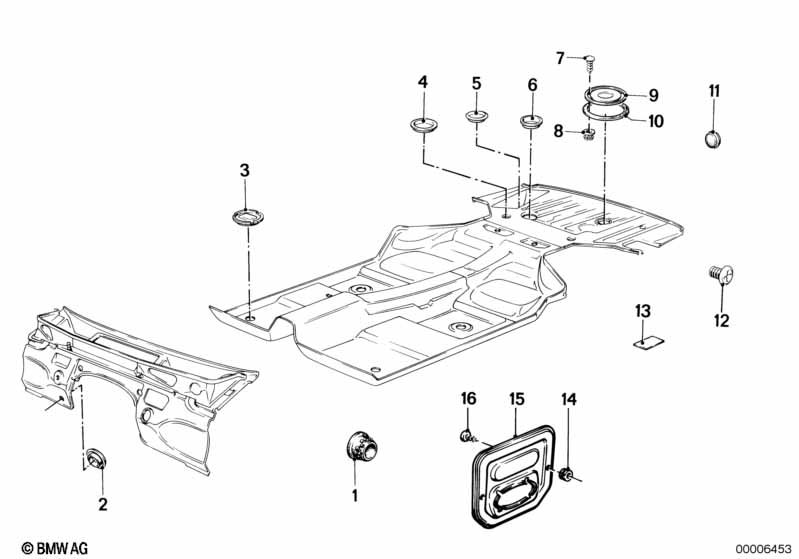

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blind plug | D=20MM | X | 51711801066 | $0.23 | Shop at ECS Tuning | ||||
| 02 | Blind plug | D=35MM | 2 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 03 | Cover lid | D=144MM | 5 | 41128200462 | $5.07 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover lid | D=105MM | 5 | 51711946184 | $1.77 | ENDED | Shop at ECS Tuning | |||
| 04 | Paint plugs with hot-melt adhesive ring | D=35MM | X | 05/1986 | 41007140847 | $0.68 | ENDED | Shop at ECS Tuning | ||
| 04 | Paint plug | D=35MM | X | 51915A0C2C4 | Shop at ECS Tuning | |||||
| 05 | Paint plugs with hot-melt adhesive ring | D=35MM | 1 | 05/1986 | 41007140847 | $0.68 | ENDED | Shop at ECS Tuning | ||
| 05 | Paint plug | D=35MM | 1 | 51915A0C2C4 | Shop at ECS Tuning | |||||
| 06 | Paint plugs with hot-melt adhesive ring | D=20MM | X | 41007140848 | $0.43 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,2X9,5-Z1 | 3 | 07119907812 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Expanding nut | 3,9 | 3 | 51135680113 | $0.28 | Shop at ECS Tuning | ||||
| 09 | Cover lid | D=176MM | 1 | 51711816654 | $27.76 | ENDED | Shop at ECS Tuning | |||
| 10 | Gasket | D=182MM | 1 | 51711820957 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 11 | Distance rubber | D=6MM | 1 | 51216742120 | $1.25 | Shop at ECS Tuning | ||||
| 12 | Screw plug | 7/16"X14 | 2 | 51711822930 | ENDED | Shop at ECS Tuning | ||||
| 13 | Protective adhesive film | 40X40MM | 2 | 51718102827 | $0.63 | Shop at ECS Tuning |
