Rear window shelf/sun blind for BMW 5 Series E28 518i (1986)

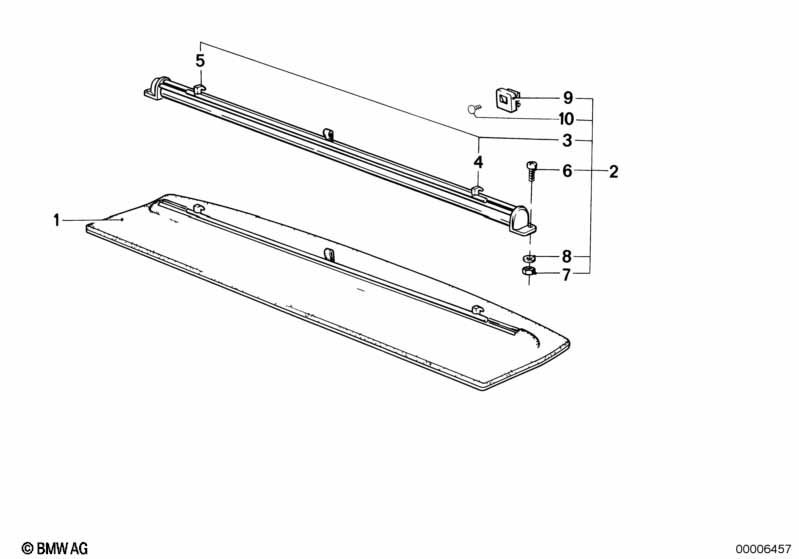

This Rear window shelf/sun blind technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window shelf with sun blind | ANTHRAZIT | 1 | 51461920522 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear window shelf with sun blind | PACIFIC | 1 | 51461920523 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear window shelf with sun blind | PINIENGRUEN | 1 | 51461920526 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear window shelf with sun blind | NUTRIA | 1 | 09/1982 | 51461920524 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf with sun blind | PERLBEIGE | 1 | 09/1982 | 51461920525 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear window shelf with sun blind | LAMA | 1 | 51461935755 | ENDED | Shop at ECS Tuning | ||||
| 03 | Roller sun shield | 1 | 51461886665 | $217.62 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hook left | 1 | 51461917381 | $1.20 | Shop at ECS Tuning | |||||
| 05 | Hook right | 1 | 51461917382 | $1.20 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M3X10-4.8-H-ZN | 4 | 07119907604 | $0.42 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M3 | 4 | 07119922016 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Washer | A3,2 | 4 | 07119931015 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Holder | ANTHRAZIT | 2 | 09/1982 | 51461905393 | $2.80 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
