Blind plug/plugs for BMW 5 Series E28 535i (1987)

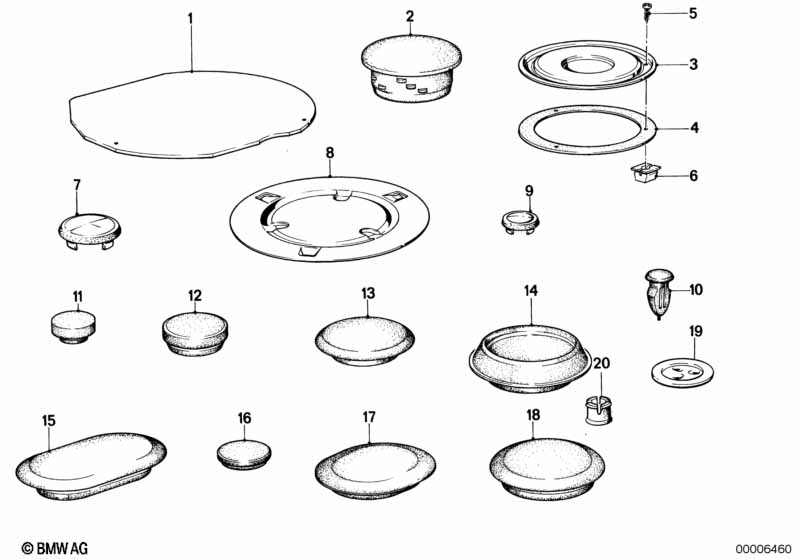

This Blind plug/plugs technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Blind plug | D=20MM | X | 51711801066 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Cover lid | D=176MM | 1 | 51711816654 | $27.76 | ENDED | Shop at ECS Tuning | |||
| 04 | Gasket | D=182MM | 1 | 51711820957 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister head self-tapping screw | ST4,2X9,5-Z1 | 3 | 07119907812 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Expanding nut | ST 3.9 | 3 | 51711874203 | $0.23 | Shop at ECS Tuning | ||||
| 07 | Paint plug | D=35MM | X | 51915A0C2C4 | Shop at ECS Tuning | |||||
| 08 | Cover lid | D=144MM | 5 | 41128200462 | $5.07 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover lid | D=105MM | 5 | 51711946184 | $1.77 | ENDED | Shop at ECS Tuning | |||
| 09 | Paint plugs with hot-melt adhesive ring | D=20MM | X | 41007140848 | $0.43 | Shop at ECS Tuning | ||||
| 10 | Blind plug | D=3,7MM | 4 | 51711850078 | $0.21 | Shop at ECS Tuning | ||||
| 11 | Distance rubber | D=6MM | 2 | 51216742120 | $1.25 | Shop at ECS Tuning | ||||
| 12 | Blind plug | D=13MM | 1 | 61138560584 | $4.34 | Shop at ECS Tuning | ||||
| 13 | Blind plug | D=18,5MM | 2 | 51211838473 | $1.34 | Shop at ECS Tuning | ||||
| 14 | Blind plug | D=35MM | 2 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 15 | Blind plug | 20X50 | 1 | 51711852763 | $1.19 | Shop at ECS Tuning | ||||
| 16 | Pushrod seal | D=8MM | 8 | 41125503104 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 17 | Blind plug | 30X36MM | X | 51711872829 | $0.89 | Shop at ECS Tuning | ||||
| 18 | Plug | D=28,5MM | 4 | 51711816805 | $0.18 | Shop at ECS Tuning | ||||
| 20 | Blind plug | D=15MM | 4 | 51711952009 | $0.23 | Shop at ECS Tuning | ||||
| 20 | Blind plug | D=13,5MM | 4 | 51711974209 | $1.03 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 535i Blind plug/plugs?
- This technical diagram illustrates the Blind plug/plugs within the Vehicle trim group for the 5 Series E28 535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Blind plug (Part #51711801066).
- Which models use the hardware listed in this Blind plug/plugs?
- The hardware and components featured in the Blind plug/plugs are specific to the 5 Series E28 535i produced during 1987. These technical specifications ensure that parts like the Blind plug (51711801066) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Blind plug/plugs assembly?
- Each item in the Blind plug/plugs corresponds to the numbered list below the illustration. For the 5 Series E28 535i, you can identify the Blind plug by locating its position on the schematic, which then links to the official BMW part number 51711801066 for the Vehicle trim section.
