Rear window shelf for BMW 5 Series E28 535i (1987)

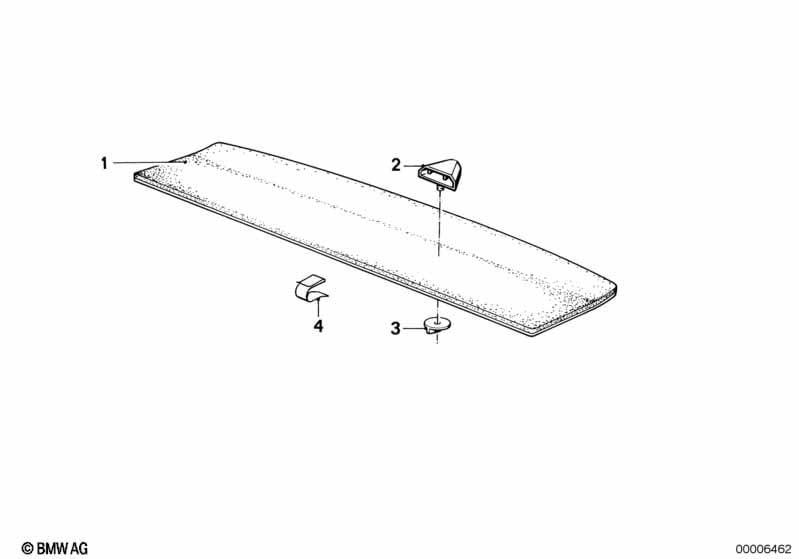

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51461920504 | $145.32 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | PACIFIC | 1 | 51461920505 | $105.18 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | PINIENGRUEN | 1 | 51461920508 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | NUTRIA | 1 | 09/1982 | 51461920506 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | PERLBEIGE | 1 | 09/1982 | 51461920507 | $145.32 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | LAMA | 1 | 09/1984 | 51461935747 | $104.35 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51461920498 | $105.18 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | PACIFIC | 1 | 51461920499 | Shop at ECS Tuning | |||||
| 01 | Rear window shelf | PINIENGRUEN | 1 | 51461920502 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | NUTRIA | 1 | 09/1982 | 51461920500 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | PERLBEIGE | 1 | 09/1982 | 51461920501 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering cap | 1 | 09/1984 | 51461973908 | $3.30 | ENDED | Shop at ECS Tuning | |||
| 03 | Wing nut | M5 | 1 | 09/1984 | 51461929406 | ENDED | Shop at ECS Tuning | |||
| 03 | Wing nut | M8 | 1 | 09/1984 | 51461973909 | $0.50 | Shop at ECS Tuning | |||
| 04 | Bracket | 2 | 09/1984 | 51461920738 | $1.47 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
