Trunk trim panel for BMW 7 Series E23 733i (1984)

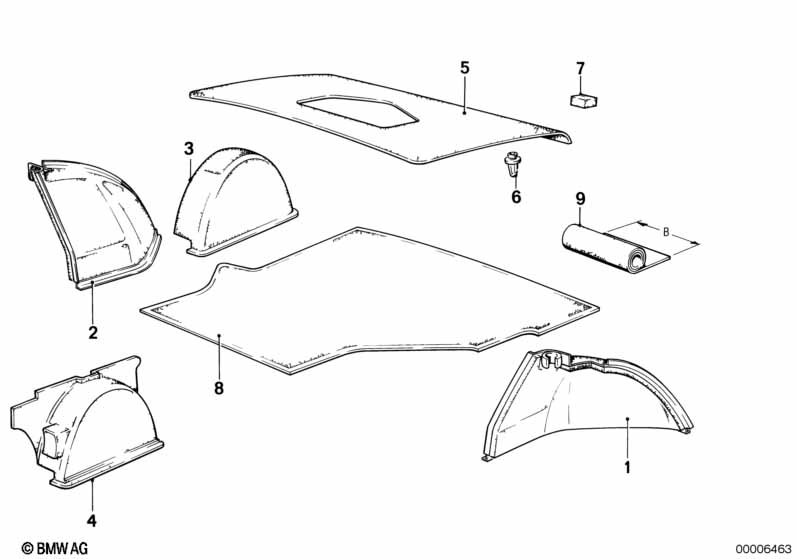

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel wheel housing part.trunk left | ANTHRAZIT | 1 | 07/1981 | 51471900253 | $160.50 | ENDED | Shop at ECS Tuning | ||
| 01 | Panel wheel housing part.trunk left | ANTHRAZIT | 1 | 07/1981 | 51471900253 | $160.50 | ENDED | Shop at ECS Tuning | ||
| 02 | Panel wheel housing part.trunk right | ANTHRAZIT | 1 | 07/1981 | 51471900254 | $160.50 | ENDED | Shop at ECS Tuning | ||
| 02 | Panel wheel housing part.trunk right | ANTHRAZIT | 1 | 07/1981 | 51471900254 | $160.50 | ENDED | Shop at ECS Tuning | ||
| 04 | Panel spare wheel | 205/70-14 | 1 | 07/1981 | 51471900258 | $167.40 | ENDED | Shop at ECS Tuning | ||
| 04 | Panel spare wheel | 205/70-14 | 1 | 07/1981 | 51471900258 | $167.40 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO TOOL BOX LARGE | ||||||||||
| 05 | Trunk lid trim panel | 1 | 51491849473 | $148.68 | Shop at ECS Tuning | |||||
| 06 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 07 | Gasket | 4 | 51131859968 | $3.21 | ENDED | Shop at ECS Tuning | ||||
| 08 | Trunk mat | ANTHRAZIT | 1 | 09/1982 | 51471904440 | $182.62 | Shop at ECS Tuning | |||
| 09 | Trunk mat | SCHWARZ-GRAU | X | 51951858399 | ENDED | Shop at ECS Tuning | ||||
| 09 | Trunk mat | B=2000MM;ANTHR. | X | 07/1981 | 51951886393 | $66.98 | Shop at ECS Tuning | |||
| 09 | Trunk mat | B=2000MM;ANTHR. | X | 07/1981 | 51951886393 | $66.98 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
