Trunk trim panel for BMW 5 Series E28 535i (1987)

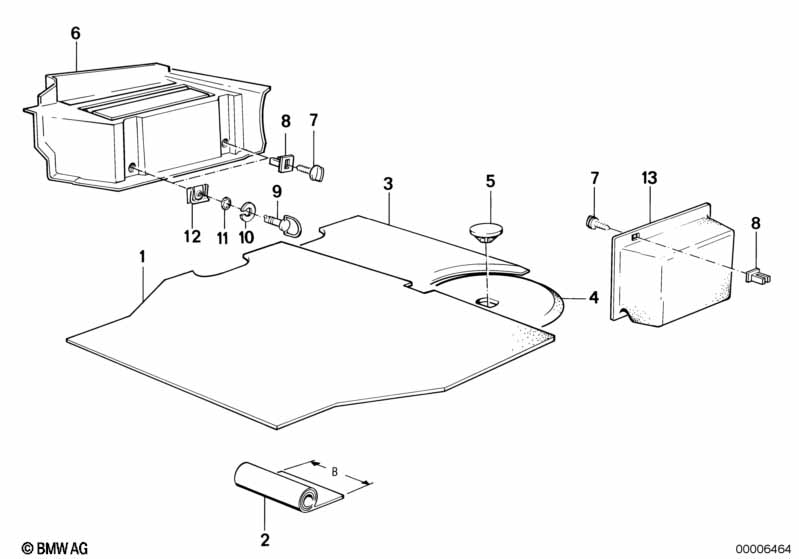

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk mat w.cover for spare wheel | ANTHRAZIT | 1 | 03/1984 | 51471917679 | $149.31 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Trunk mat w.cover for spare wheel | ANTHRAZIT/PVC | 1 | 51471921497 | ENDED | Shop at ECS Tuning | ||||
| 03 | Heat insulator floor panel trunk | 1 | 51481920869 | $53.50 | ENDED | Shop at ECS Tuning | ||||
| 03 | Insert mats velours | 1 | 51489061520 | ENDED | Shop at ECS Tuning | |||||
| 04 | Covering left | 1 | 51481925883 | $72.82 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO TRUNK MAT W.COVER FOR SPARE WHEEL |
||||||||||
| 05 | Pad | H=14MM | 1 | 03/1984 | 51471904726 | $1.88 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 535i Trunk trim panel?
- This technical diagram illustrates the Trunk trim panel within the Vehicle trim group for the 5 Series E28 535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Trunk mat w.cover for spare wheel (Part #51471917679).
- Which models use the hardware listed in this Trunk trim panel?
- The hardware and components featured in the Trunk trim panel are specific to the 5 Series E28 535i produced during 1987. These technical specifications ensure that parts like the Trunk mat w.cover for spare wheel (51471917679) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk trim panel assembly?
- Each item in the Trunk trim panel corresponds to the numbered list below the illustration. For the 5 Series E28 535i, you can identify the Trunk mat w.cover for spare wheel by locating its position on the schematic, which then links to the official BMW part number 51471917679 for the Vehicle trim section.
