Trunk trim panel for BMW 5 Series E34 520i (1993)

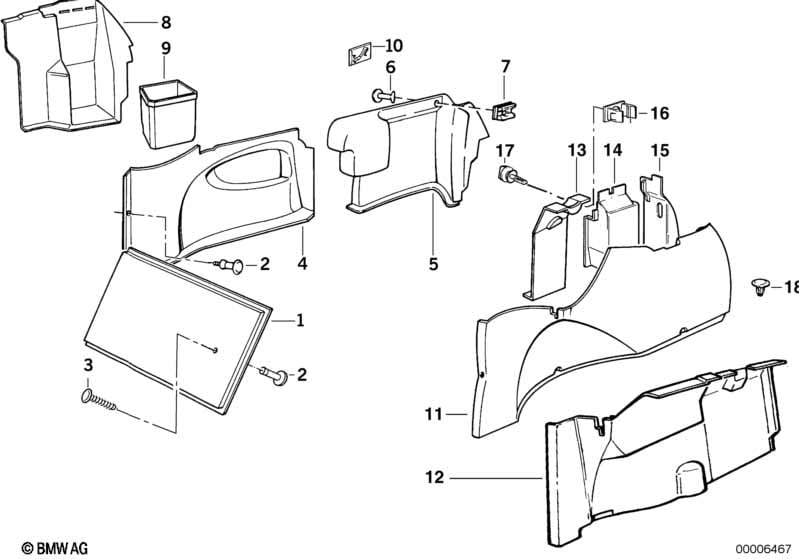

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk partition trim panel | MITTELGRAU | 1 | 51471946275 | $89.90 | ENDED | Shop at ECS Tuning | |||
| 02 | Push-button | SCHIEFER | 4 | 51471954694 | $1.37 | Shop at ECS Tuning | ||||
| 03 | Pin | 2 | 51478117523 | $0.52 | Shop at ECS Tuning | |||||
| 03 | Pin | 2 | 51478126285 | $1.15 | Shop at ECS Tuning | |||||
| 04 | Panel wheel housing part.trunk right | MITTELGRAU | 1 | 09/1990 | 51478126560 | $98.20 | Shop at ECS Tuning | |||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 05 | Trim panel right | MITTELGRAU | 1 | 51478102910 | $81.45 | Shop at ECS Tuning | ||||
| 06 | Lock | MITTELGRAU | 3 | 51478102980 | $1.10 | Shop at ECS Tuning | ||||
| 07 | Cam disc | 3 | 51478107534 | $0.65 | Shop at ECS Tuning | |||||
| 08 | Trim panel right | MITTELGRAU | 1 | 02/1990 | 51478126254 | $51.98 | Shop at ECS Tuning | |||
| 09 | Storing partition | 1 | 02/1990 | 51478110968 | $5.95 | Shop at ECS Tuning | ||||
| 10 | Emblem | 1 | 51478102869 | $1.77 | ENDED | Shop at ECS Tuning | ||||
| 11 | Panel wheel housing part.trunk left | MITTELGRAU | 1 | 09/1990 | 51478126561 | $163.07 | Shop at ECS Tuning | |||
| ONLY APPLIES TO D-SYSTEM | ||||||||||
| 12 | Panel wheel housing part.trunk left | MITTELGRAU | 1 | 10/1991 | 51478155699 | $229.14 | ENDED | Shop at ECS Tuning | ||
| For vehicles with 2nd battery ONLY APPLIES TO C-SYSTEM |
=Yes |
|||||||||
| 12 | Panel wheel housing part.trunk left | MITTELGRAU | 1 | 51478181998 | $216.50 | ENDED | Shop at ECS Tuning | |||
| For vehicles with CD Changer |
=Yes |
|||||||||
| 12 | Panel wheel housing part.trunk left | MITTELGRAU | 1 | 51478155703 | $229.14 | Shop at ECS Tuning | ||||
| For vehicles with CD Changer ONLY APPLIES TO D-SYSTEM |
=Yes |
|||||||||
| 12 | Panel wheel housing part.trunk left | MITTELGRAU | 1 | 51478155703 | $229.14 | Shop at ECS Tuning | ||||
| 13 | Cover | 1 | 51478181999 | $81.19 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with CD Changer |
=Yes |
|||||||||
| 13 | Cover | 1 | 51478155701 | $104.31 | ENDED | Shop at ECS Tuning | ||||
| 16 | Lock insert | 1 | 64111376327 | $0.80 | Shop at ECS Tuning | |||||
| 17 | Lock | 1 | 51711916197 | $1.35 | Shop at ECS Tuning | |||||
| 18 | Clip | H=15MM | 1 | 51481924909 | $0.42 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
