Trunk trim panel for BMW 3 Series E30 320i (1990)

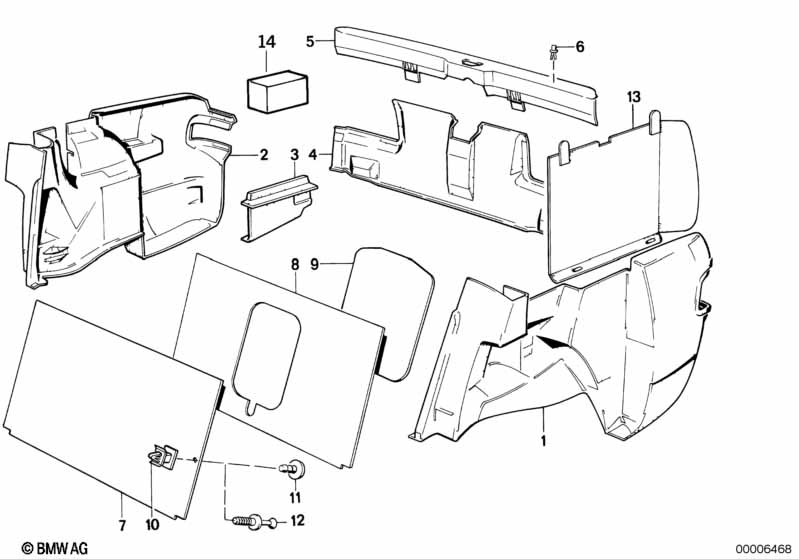

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel wheel housing part.trunk left | ANTHRAZIT | 1 | 09/1987 | 51471962351 | $73.27 | ENDED | Shop at ECS Tuning | ||
| 02 | Panel wheel housing part.trunk right | ANTHRAZIT | 1 | 09/1987 | 51471962352 | $78.96 | ENDED | Shop at ECS Tuning | ||
| 03 | Right fender panel | ANTHRAZIT | 1 | 09/1987 | 51471962362 | $16.92 | Shop at ECS Tuning | |||
| 04 | Tail trim panel | ANTHRAZIT | 1 | 09/1987 | 51471962350 | $104.47 | Shop at ECS Tuning | |||
| 05 | Covering support tail panel | 1 | 09/1985 | 51471904968 | $33.42 | Shop at ECS Tuning | ||||
| 06 | Expanding rivet | 4 | 09/1985 | 51481905599 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Trunk partition trim panel | 1 | 51471935689 | $14.73 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO ADDITIONAL FUEL TANK WITHOUT SKI BAG |
||||||||||
| 07 | Trunk partition trim panel | 1 | 09/1985 | 51471937372 | $30.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Ski bag |
=Yes |
|||||||||
| 08 | Trunk partition trim panel | 1 | 12/1984 | 51471933720 | $96.88 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover | 1 | 12/1984 | 51471933576 | $9.65 | ENDED | Shop at ECS Tuning | |||
| 12 | Expanding rivet | 6 | 02/1983 | 51481884779 | $0.57 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
