Rear window shelf for BMW 7 Series E23 728i (1986)

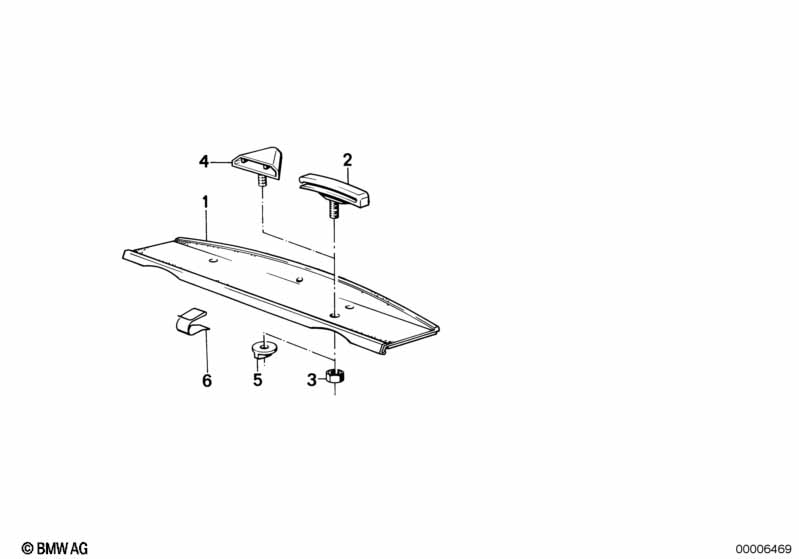

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window shelf | NUTRIA | 1 | 04/1985 | 51462910288 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | PEARL BEIGE | 1 | 04/1985 | 51462910289 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | ANTHRACITE | 1 | 04/1985 | 51462910290 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | PACIFIC BLUE | 1 | 04/1985 | 51462910291 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | PINE GREEN | 1 | 04/1985 | 51462910292 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | LAMA | 1 | 04/1985 | 51462910293 | Shop at ECS Tuning | ||||
| Trunk trim panel | ||||||||||
| 04 | Covering cap | 1 | 01/1985 | 51461973908 | $3.30 | ENDED | Shop at ECS Tuning | |||
| 05 | Wing nut | M5 | 1 | 01/1985 | 51461929406 | ENDED | Shop at ECS Tuning | |||
| 05 | Wing nut | M8 | 1 | 01/1985 | 51461973909 | $0.50 | Shop at ECS Tuning | |||
| 06 | Bracket | 3 | 51461920738 | $1.47 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Rear window shelf?
- This technical diagram illustrates the Rear window shelf within the Vehicle trim group for the 7 Series E23 728i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Rear window shelf (Part #51462910288).
- Which models use the hardware listed in this Rear window shelf?
- The hardware and components featured in the Rear window shelf are specific to the 7 Series E23 728i produced during 1986. These technical specifications ensure that parts like the Rear window shelf (51462910288) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear window shelf assembly?
- Each item in the Rear window shelf corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Rear window shelf by locating its position on the schematic, which then links to the official BMW part number 51462910288 for the Vehicle trim section.
