Rear window shelf for BMW 3 Series E30 325i (1989)

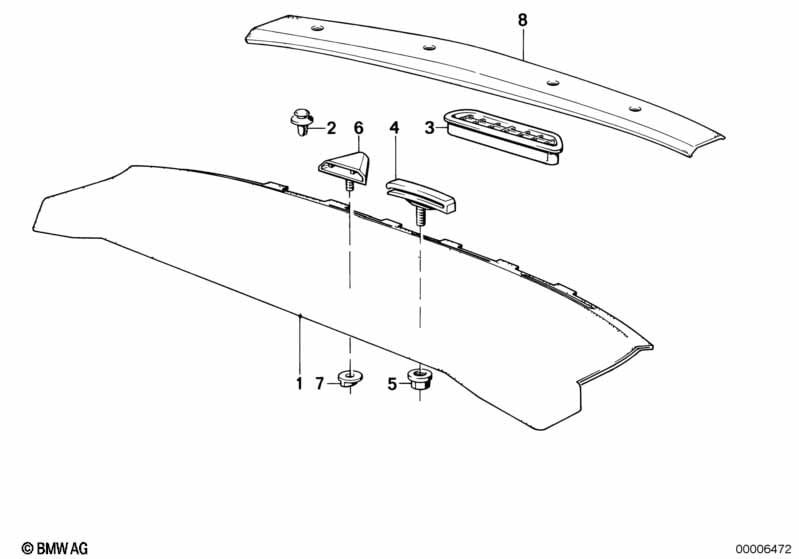

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window shelf | ANTHRAZIT | 1 | 06/1988 | 51461971632 | $187.44 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | SILBER | 1 | 06/1988 | 51461971633 | $131.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | INDIGO | 1 | 06/1988 | 51461971634 | $131.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | HAVANNA | 1 | 06/1988 | 51461971635 | $126.21 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | NATUR | 1 | 06/1988 | 51461971636 | $133.60 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | CARDINALROT | 1 | 06/1988 | 51461971946 | $131.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | KARMESINROT | 1 | 06/1988 | 51468112254 | $131.69 | ENDED | Shop at ECS Tuning | ||
| 02 | Clamp | 3 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 02 | Clamp | SCHWARZ | 3 | 51461915535 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Air outlet | 1 | 09/1988 | 51461971937 | $8.39 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering cap | 1 | 05/1984 | 51461922207 | $0.86 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering cap | 1 | 05/1984 | 51461953039 | $0.68 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering cap | 1 | 05/1984 | 51461973908 | $3.30 | ENDED | Shop at ECS Tuning | |||
| 07 | Wing nut | M5 | 1 | 05/1984 | 51461929406 | ENDED | Shop at ECS Tuning | |||
| 07 | Wing nut | M8 | 1 | 05/1984 | 51461973909 | $0.50 | Shop at ECS Tuning |
