Trunk trim panel for BMW 3 Series E30 325i (1989)

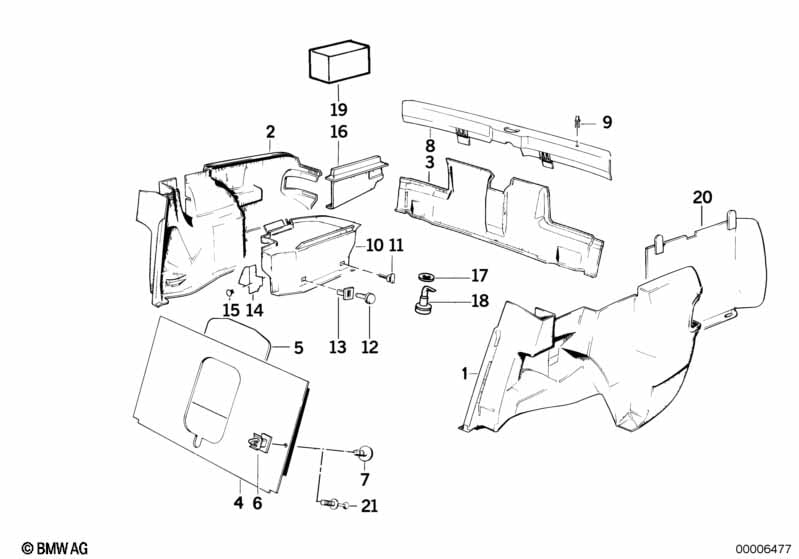

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel wheel housing part.trunk left | ANTHRAZIT | 1 | 09/1987 | 51471962351 | $73.27 | ENDED | Shop at ECS Tuning | ||
| 02 | Panel wheel housing part.trunk right | ANTHRAZIT | 1 | 09/1987 | 51471962356 | $87.04 | ENDED | Shop at ECS Tuning | ||
| 03 | Tail trim panel | ANTHRAZIT | 1 | 09/1987 | 51471962350 | $104.47 | Shop at ECS Tuning | |||
| 04 | Trunk partition trim panel | 1 | 51471935689 | $14.73 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CENTER ARMREST REAR SKI BAG |
||||||||||
| 04 | Trunk partition trim panel | 1 | 51471933720 | $96.88 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 51471933576 | $9.65 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering support tail panel | 1 | 51471904968 | $33.42 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | 4 | 51481905599 | $0.77 | Shop at ECS Tuning | |||||
| 10 | Battery cover | 1 | 09/1987 | 51471971556 | $37.36 | Shop at ECS Tuning | ||||
| 12 | Push-button | 3 | 09/1986 | 51471945266 | $0.55 | Shop at ECS Tuning | ||||
| 13 | Lock insert | 3 | 09/1986 | 51711916199 | $0.32 | Shop at ECS Tuning | ||||
| 14 | Impact protection | 1 | 51471929449 | $11.03 | Shop at ECS Tuning | |||||
| 15 | Clip | H=15MM | 1 | 51481924909 | $0.42 | Shop at ECS Tuning | ||||
| 21 | Expanding rivet | 4 | 51481904142 | $0.57 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
