Trunk trim panel for BMW 3 Series E30 325i (1989)

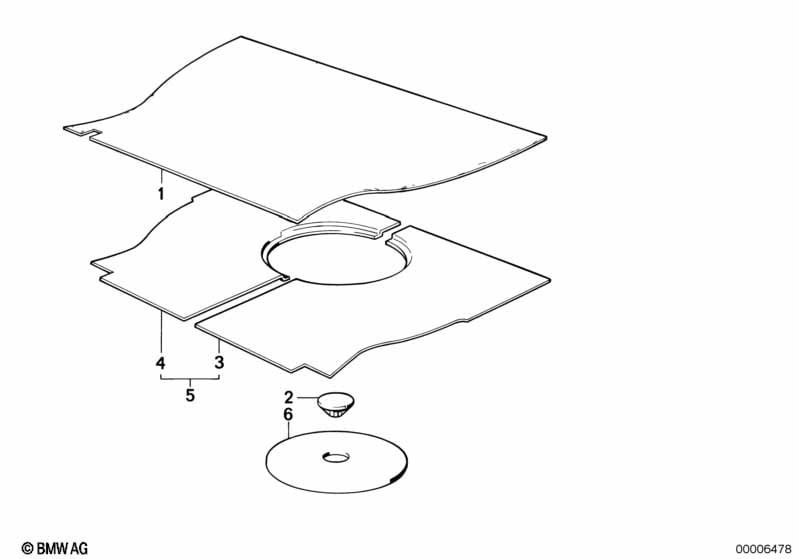

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk mat w.cover for spare wheel | ANTHRAZIT | 1 | 51471933908 | $117.71 | ENDED | Shop at ECS Tuning | |||
| 02 | Pad | H=14MM | 1 | 09/1985 | 51471904726 | $1.88 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Trunk trim panel?
- This technical diagram illustrates the Trunk trim panel within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Trunk mat w.cover for spare wheel (Part #51471933908).
- Which models use the hardware listed in this Trunk trim panel?
- The hardware and components featured in the Trunk trim panel are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Trunk mat w.cover for spare wheel (51471933908) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk trim panel assembly?
- Each item in the Trunk trim panel corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Trunk mat w.cover for spare wheel by locating its position on the schematic, which then links to the official BMW part number 51471933908 for the Vehicle trim section.
