Trunk trim panel for BMW 3 Series E30 323i (1986)

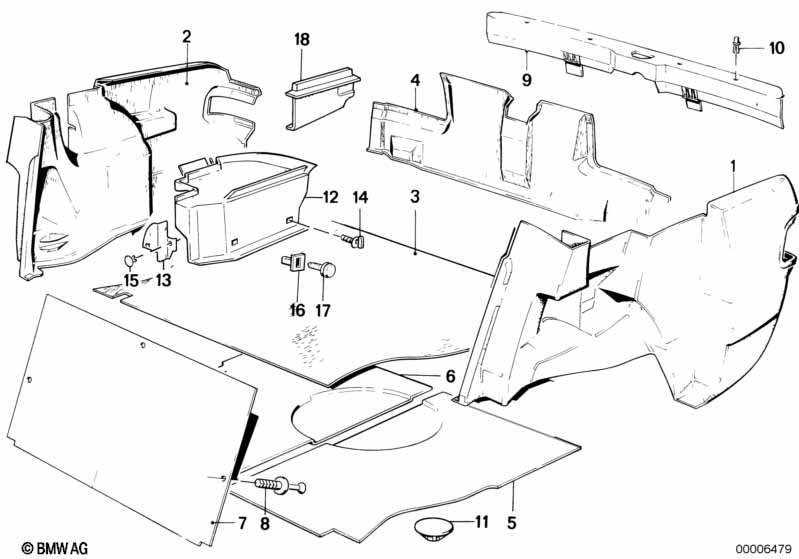

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Tail trim panel | ANTHRAZIT | 1 | 01/1985 | 01/1987 | 51471923981 | $104.47 | Shop at ECS Tuning | ||
| 05 | Sound deadener | 1 | 51482903848 | Shop at ECS Tuning | ||||||
| 07 | Trunk partition trim panel | 1 | 51472902140 | Shop at ECS Tuning | ||||||
| 08 | Expanding rivet | 3 | 51481884779 | $0.57 | Shop at ECS Tuning | |||||
| 09 | Covering support tail panel | 1 | 51471904968 | $33.42 | Shop at ECS Tuning | |||||
| 10 | Expanding rivet | 4 | 51481905599 | $0.77 | Shop at ECS Tuning | |||||
| 11 | Pad | H=14MM | 1 | 51471904726 | $1.88 | ENDED | Shop at ECS Tuning | |||
| 11 | Pad | H=50MM | 1 | 51471944899 | $3.37 | Shop at ECS Tuning | ||||
| 12 | Battery cover | 1 | 01/1987 | 51471884346 | $32.39 | ENDED | Shop at ECS Tuning | |||
| 13 | Impact protection | 1 | 51471929449 | $11.03 | Shop at ECS Tuning | |||||
| 14 | Lock | 2 | 51471923983 | $0.82 | Shop at ECS Tuning | |||||
| 15 | Clip | H=15MM | 1 | 51481924909 | $0.42 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
