Rear window shelf/sun blind for BMW 6 Series E24 635CSi (1989)

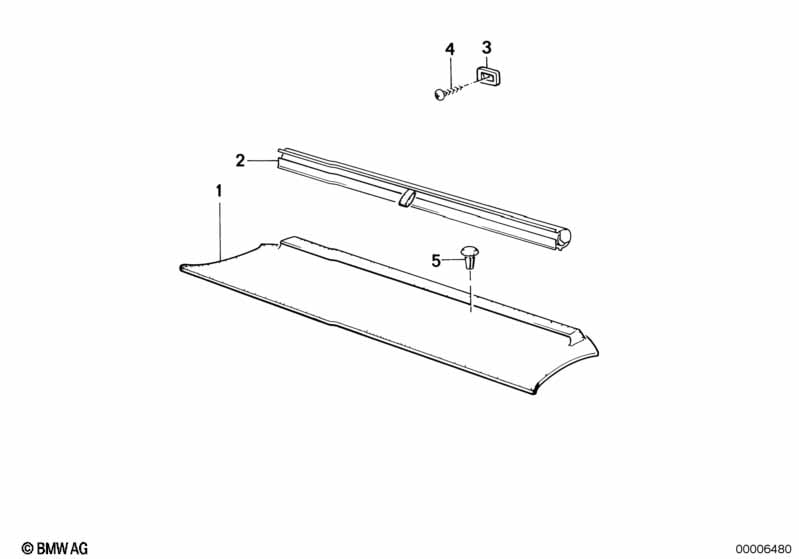

This Rear window shelf/sun blind technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | WITHOUT SUN BLIND |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51461939041 | $405.11 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | SILBER | 1 | 06/1987 | 51461979630 | $405.11 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | SILBER | 1 | 06/1987 | 51461979630 | $405.11 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | INDIGO | 1 | 06/1987 | 51461979631 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | INDIGO | 1 | 06/1987 | 51461979631 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | HAVANNA | 1 | 06/1987 | 51461979632 | $381.67 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | HAVANNA | 1 | 06/1987 | 51461979632 | $381.67 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | NATUR | 1 | 06/1987 | 51461979633 | $381.67 | Shop at ECS Tuning | |||
| 01 | Rear window shelf | NATUR | 1 | 06/1987 | 51461979633 | $381.67 | Shop at ECS Tuning | |||
| 01 | Rear window shelf | CARDINALROT | 1 | 06/1987 | 51461979634 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | CARDINALROT | 1 | 06/1987 | 51461979634 | ENDED | Shop at ECS Tuning | |||
| For vehicles with High Line |
=Yes |
|||||||||
| 01 | Rear window shelf | LOTOSWEISS | 1 | 51461965357 | $473.18 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | NATUR | 1 | 51461965358 | $511.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | SILBER | 1 | 51461965359 | $562.29 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | SCHWARZ | 1 | 51468106802 | $492.16 | ENDED | Shop at ECS Tuning | |||
| 02 | Roller sun shield | 1 | 51461939054 | $370.65 | ENDED | Shop at ECS Tuning | ||||
| 03 | Holder | ANTHRAZIT | 2 | 51461941328 | $0.91 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,2X16-ABW | 2 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Clamp | 8 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
