Trunk trim panel for BMW 3 Series E30 325i (1988)

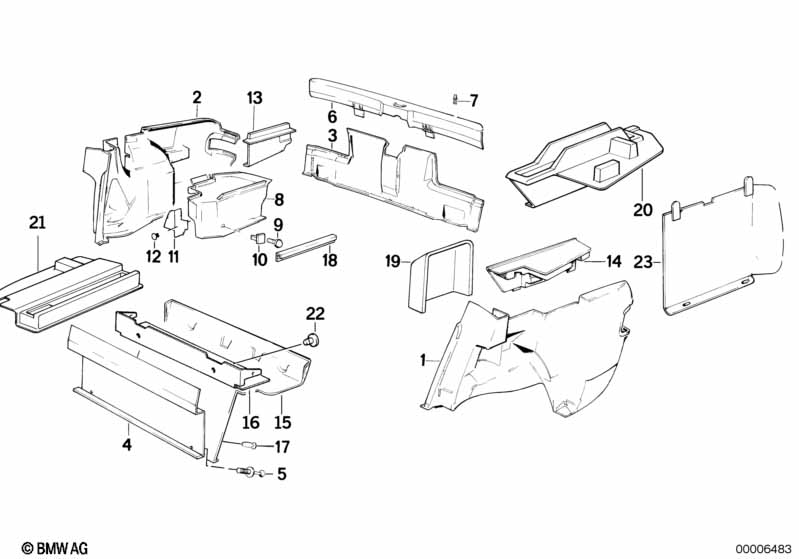

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CONTROL UNIT EH-GEARBOX |
||||||||||
| 01 | Panel wheel housing part.trunk left | ANTHRAZIT | 1 | 10/1990 | 51471953299 | ENDED | Shop at ECS Tuning | |||
| For vehicles with EH Folding top |
=Yes |
|||||||||
| 01 | Panel wheel housing part.trunk left | ANTHRAZIT | 1 | 03/1990 | 51472238061 | $171.69 | ENDED | Shop at ECS Tuning | ||
| 02 | Panel wheel housing part.trunk right | ANTHRAZIT | 1 | 10/1990 | 51478106588 | $65.29 | ENDED | Shop at ECS Tuning | ||
| For vehicles with EH Folding top |
=Yes |
|||||||||
| 02 | Panel wheel housing part.trunk right | 1 | 10/1990 | 51478121398 | $57.09 | ENDED | Shop at ECS Tuning | |||
| 03 | Tail trim panel | ANTHRAZIT | 1 | 10/1990 | 51471923981 | $104.47 | Shop at ECS Tuning | |||
| For vehicles with Ski bag |
=Yes |
|||||||||
| 05 | Expanding rivet | 2 | 51481884779 | $0.57 | Shop at ECS Tuning | |||||
| 06 | Covering support tail panel | 1 | 51471904968 | $33.42 | Shop at ECS Tuning | |||||
| 07 | Expanding rivet | 4 | 51481905599 | $0.77 | Shop at ECS Tuning | |||||
| 15 | Covering hood compartment | 1 | 51471932815 | $106.38 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with EH Folding top |
=Yes |
|||||||||
| 15 | Covering hood compartment | 1 | 51478121399 | $88.26 | ENDED | Shop at ECS Tuning | ||||
| 16 | Inner hood compartment panel | 1 | 51411932851 | $15.32 | ENDED | Shop at ECS Tuning | ||||
| 17 | Plug | X | 51441854624 | $0.39 | Shop at ECS Tuning | |||||
| 17 | Expanding rivet | X | 51481938725 | $0.37 | Shop at ECS Tuning | |||||
| 18 | Edge protection | X | 51471953805 | $28.33 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with EH Folding top |
=Yes |
|||||||||
| 19 | Trim panel hydro unit | 1 | 51472238079 | $87.05 | ENDED | Shop at ECS Tuning | ||||
| 21 | Trim panel right | 1 | 72608121339 | $40.73 | ENDED | Shop at ECS Tuning | ||||
| 22 | Plug | 4 | 51478134304 | $0.97 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CONTROL UNIT EH-GEARBOX |
||||||||||
| 23 | Cover | 1 | 09/1985 | 51471939529 | $86.30 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Trunk trim panel?
- This technical diagram illustrates the Trunk trim panel within the Vehicle trim group for the 3 Series E30 325i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Panel wheel housing part.trunk left (Part #51471953299).
- Which models use the hardware listed in this Trunk trim panel?
- The hardware and components featured in the Trunk trim panel are specific to the 3 Series E30 325i produced during 1988. These technical specifications ensure that parts like the Panel wheel housing part.trunk left (51471953299) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk trim panel assembly?
- Each item in the Trunk trim panel corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Panel wheel housing part.trunk left by locating its position on the schematic, which then links to the official BMW part number 51471953299 for the Vehicle trim section.
