Trim / through-loading facility for BMW 5 Series E34 520i (1990)

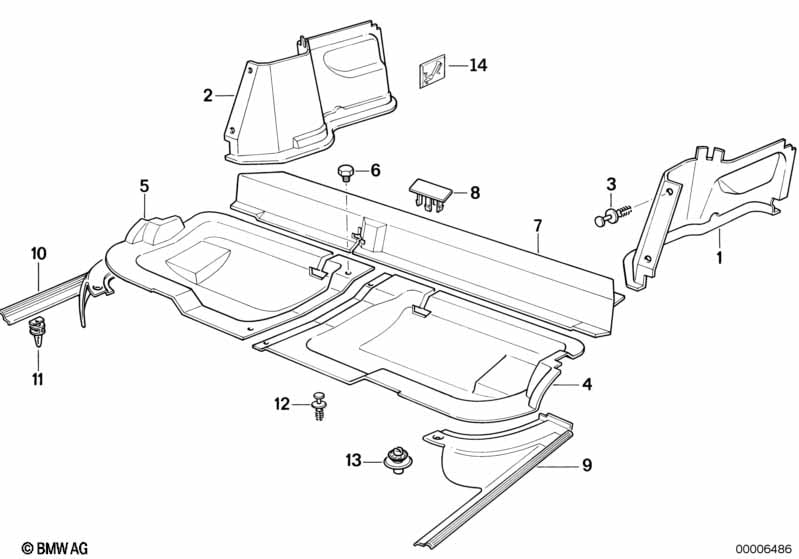

This Trim / through-loading facility technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel wheel housing part.trunk left | MITTELGRAU | 1 | 11/1990 | 51478102871 | $116.06 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO C-SYSTEM | ||||||||||
| 01 | Panel wheel housing part.trunk left | MITTELGRAU | 1 | 09/1993 | 51478181922 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO D-SYSTEM | ||||||||||
| 01 | Panel wheel housing part.trunk left | 1 | 51478148891 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with CD Changer and 2nd battery ONLY APPLIES TO C-SYSTEM |
=Yes =Yes |
|||||||||
| 01 | Panel wheel housing part.trunk left | 1 | 51478155705 | $218.74 | ENDED | Shop at ECS Tuning | ||||
| 02 | Panel wheel housing part.trunk right | MITTELGRAU | 1 | 11/1990 | 51478102872 | ENDED | Shop at ECS Tuning | |||
| 03 | Expanding rivet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Covering left | 1 | 51478149845 | $159.59 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering right | 1 | 51478149846 | $159.59 | ENDED | Shop at ECS Tuning | ||||
| 06 | Push-button | 2 | 51478102939 | $0.81 | Shop at ECS Tuning | |||||
| 07 | Trim panel | 1 | 51478102875 | $98.49 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cover | SCHIEFER | 1 | 09/1990 | 51478107031 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | INDIGO | 1 | 09/1990 | 51478107032 | $2.42 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | NATUR | 1 | 09/1990 | 51478107033 | $2.42 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | HAVANNA | 1 | 09/1990 | 51478107034 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | KARMESINROT | 1 | 09/1989 | 51478107035 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | KARMESINROT | 1 | 09/1989 | 51478107035 | ENDED | Shop at ECS Tuning | |||
| 09 | Trim panel lower left | SCHIEFER | 1 | 09/1990 | 51478107037 | Shop at ECS Tuning | ||||
| 09 | Trim panel lower left | INDIGO | 1 | 09/1990 | 51478107039 | ENDED | Shop at ECS Tuning | |||
| 09 | Trim panel lower left | NATUR | 1 | 09/1990 | 51478107041 | ENDED | Shop at ECS Tuning | |||
| 09 | Trim panel lower left | HAVANNA | 1 | 09/1990 | 51478107043 | ENDED | Shop at ECS Tuning | |||
| 09 | Trim panel lower left | KARMESINROT | 1 | 09/1989 | 51478107045 | ENDED | Shop at ECS Tuning | |||
| 09 | Trim panel lower left | KARMESINROT | 1 | 09/1989 | 51478107045 | ENDED | Shop at ECS Tuning | |||
| 10 | Trim panel lower right | SCHIEFER | 1 | 09/1990 | 51478107038 | ENDED | Shop at ECS Tuning | |||
| 10 | Trim panel lower right | INDIGO | 1 | 09/1990 | 51478107040 | ENDED | Shop at ECS Tuning | |||
| 10 | Trim panel lower right | NATUR | 1 | 09/1990 | 51478107042 | ENDED | Shop at ECS Tuning | |||
| 10 | Trim panel lower right | HAVANNA | 1 | 09/1990 | 51478107044 | ENDED | Shop at ECS Tuning | |||
| 10 | Trim panel lower right | KARMESINROT | 1 | 09/1989 | 51478107046 | ENDED | Shop at ECS Tuning | |||
| 10 | Trim panel lower right | KARMESINROT | 1 | 09/1989 | 51478107046 | ENDED | Shop at ECS Tuning | |||
| 11 | Sill strip clip | X | 51478234047 | $0.44 | Shop at ECS Tuning | |||||
| 12 | Push-button | SCHIEFER | 1 | 09/1990 | 51478107047 | Shop at ECS Tuning | ||||
| 12 | Push-button | INDIGO | 1 | 09/1990 | 51478107048 | ENDED | Shop at ECS Tuning | |||
| 12 | Push-button | NATUR | 1 | 09/1990 | 51478107049 | ENDED | Shop at ECS Tuning | |||
| 12 | Push-button | HAVANNA | 1 | 09/1990 | 51478107050 | ENDED | Shop at ECS Tuning | |||
| 12 | Push-button | KARMESINROT | 1 | 09/1989 | 51478107051 | ENDED | Shop at ECS Tuning | |||
| 12 | Push-button | KARMESINROT | 1 | 09/1989 | 51478107051 | ENDED | Shop at ECS Tuning | |||
| 13 | Clamp | 2 | 51478181444 | $1.35 | ENDED | Shop at ECS Tuning | ||||
| 14 | Emblem | 1 | 51478102869 | $1.77 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
