Sound insulation for BMW 3 Series E21 320 (1979)

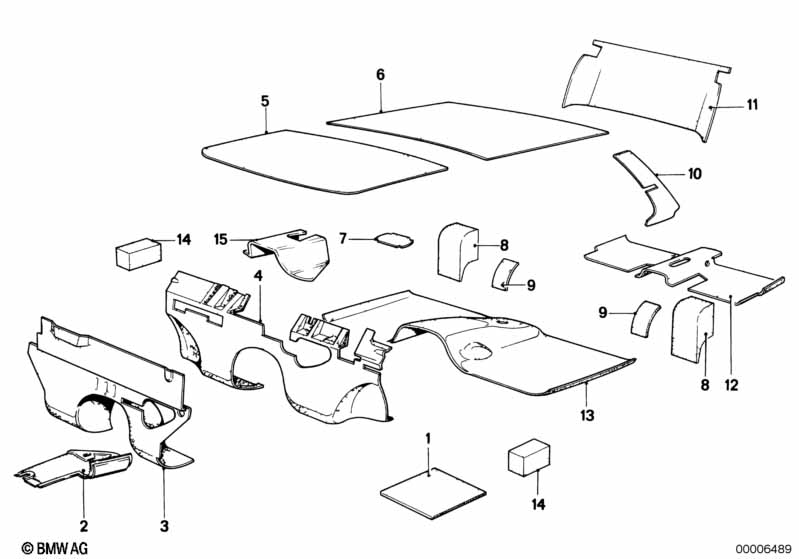

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 03 | Sound insulating dash panel engine room | 1 | 08/1977 | 51481852060 | $98.80 | ENDED | Shop at ECS Tuning | |||
| 04 | Sound insulation, bulkhead, interior | 1 | 08/1977 | 51481852053 | $123.88 | ENDED | Shop at ECS Tuning | |||
| 05 | Sound insulating roof front | 1 | 51481866267 | $13.11 | ENDED | Shop at ECS Tuning | ||||
| 06 | Sound insulating roof rear | 1 | 51481866268 | $13.11 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound absorber | 1 | 51481847511 | ENDED | Shop at ECS Tuning | |||||
| 08 | Sound insulatng wheel housing | 2 | 51481866668 | ENDED | Shop at ECS Tuning | |||||
| 10 | Sound insulating rear window frame left | 1 | 51481826865 | ENDED | Shop at ECS Tuning | |||||
| 10 | Sound insulating rear window frame right | 1 | 51481826866 | ENDED | Shop at ECS Tuning | |||||
| 11 | Sound insulating front trunk panel | 1 | 51481866699 | ENDED | Shop at ECS Tuning | |||||
| 12 | Sound insulation floor rear | 1 | 51481849727 | $87.91 | ENDED | Shop at ECS Tuning | ||||
| 13 | Front floor panel sound insulation | 1 | 08/1978 | 51481868299 | ENDED | Shop at ECS Tuning | ||||
| 14 | Damping piece for apron | 2 | 51481825917 | ENDED | Shop at ECS Tuning | |||||
| 15 | Heat insulation tunnel upper | 1 | 51481855558 | $103.70 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
