Sound insulation for BMW 3 Series E21 320i (1982)

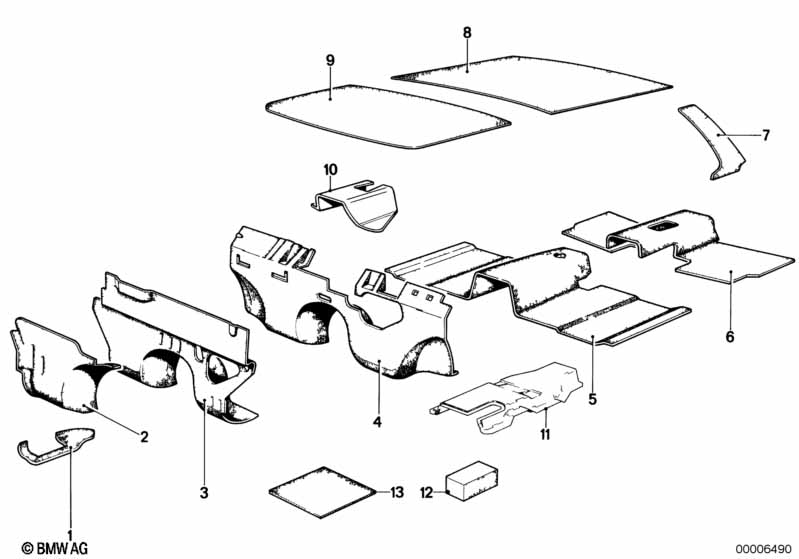

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat insulation tunnel bottom | 1 | 09/1977 | 51481856988 | $58.76 | Shop at ECS Tuning | ||||
| For vehicles with California version |
=Yes |
|||||||||
| 02 | Sound insulation | 1 | 51481856987 | ENDED | Shop at ECS Tuning | |||||
| 03 | Sound insulating dash panel engine room | 1 | 09/1977 | 51481852059 | $96.34 | Shop at ECS Tuning | ||||
| For vehicles with California version |
=No |
|||||||||
| 03 | Sound insulating dash panel engine room | 1 | 09/1977 | 51481852059 | $96.34 | Shop at ECS Tuning | ||||
| 03 | Sound insulating dash panel engine room | 1 | 09/1977 | 51481855611 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sound insulating dash panel | 1 | 51481866199 | $135.03 | ENDED | Shop at ECS Tuning | ||||
| 05 | Front floor panel sound insulation | 1 | 09/1978 | 51481869789 | ENDED | Shop at ECS Tuning | ||||
| 06 | Sound insulation floor rear | 1 | 51481849727 | $87.91 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound insulating rear window frame left | 1 | 51481826865 | ENDED | Shop at ECS Tuning | |||||
| 07 | Sound insulating rear window frame right | 1 | 51481826866 | ENDED | Shop at ECS Tuning | |||||
| 08 | Sound insulating roof rear | 1 | 51481866268 | $13.11 | ENDED | Shop at ECS Tuning | ||||
| 09 | Sound insulating roof front | 1 | 51481866267 | $13.11 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with California version |
=Yes |
|||||||||
| 10 | Heat insulation tunnel upper | 1 | 51481855558 | $103.70 | ENDED | Shop at ECS Tuning | ||||
| 11 | Heat insulation tunnel bottom | 1 | 51481860185 | Shop at ECS Tuning | ||||||
| 12 | Damping piece for apron | 1 | 51481825917 | ENDED | Shop at ECS Tuning | |||||
| 13 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
