Sound insulation for BMW 5 Series E12 518 (1976)

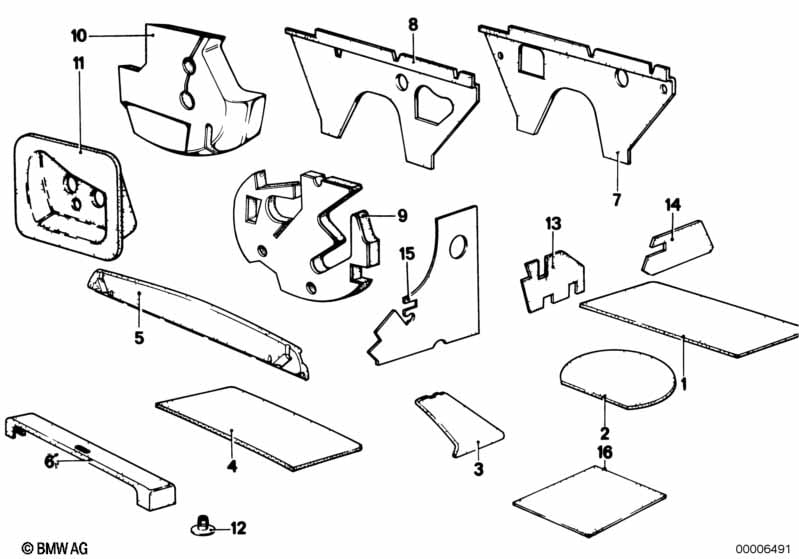

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating roof front | 1 | 51481814553 | ENDED | Shop at ECS Tuning | |||||
| 02 | Sound insulating depositing panel | 2 | 51481805817 | ENDED | Shop at ECS Tuning | |||||
| 03 | Sound insulating rear window frame left | 1 | 51481815887 | $73.90 | Shop at ECS Tuning | |||||
| 03 | Sound insulating rear window frame right | 1 | 51481815888 | $73.90 | Shop at ECS Tuning | |||||
| 04 | Sound insulating roof rear | 1 | 51481821217 | ENDED | Shop at ECS Tuning | |||||
| 06 | Sound insulating roof center | 1 | 51481821386 | ENDED | Shop at ECS Tuning | |||||
| 08 | Sound insulating dash panel engine room | 1 | 51481858012 | ENDED | Shop at ECS Tuning | |||||
| 11 | Sound insulating pedal mecanism | 1 | 08/1978 | 51481827556 | ENDED | Shop at ECS Tuning | ||||
| 12 | Clamp | 4 | 51481872799 | $1.23 | ENDED | Shop at ECS Tuning | ||||
| 15 | Sound deadener wheel housing front right | 1 | 51481822058 | ENDED | Shop at ECS Tuning | |||||
| 16 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
