Interior trim lateral for BMW 5 Series E12 528 (1976)

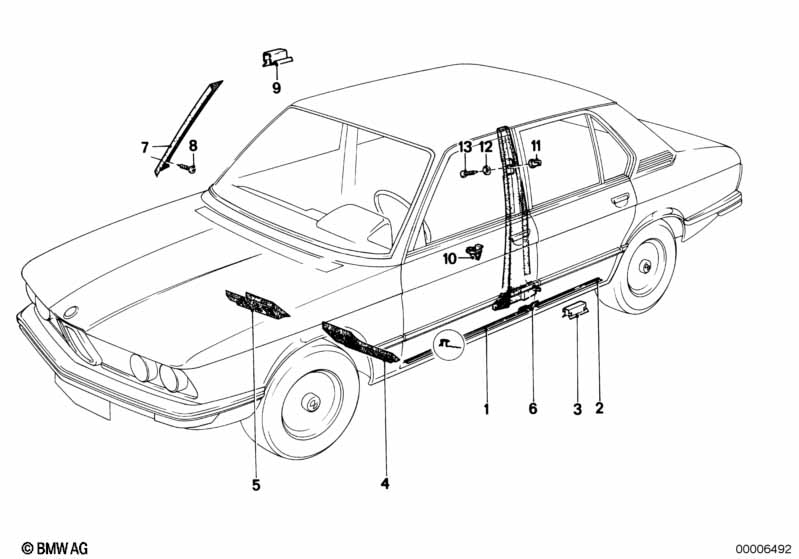

This Interior trim lateral technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sill strip front | 2 | 51471816723 | $20.92 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sill strip rear | 2 | 51471816724 | $20.92 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clamp | X | 51471800290 | $1.76 | Shop at ECS Tuning | |||||
| 07 | Covering apron left | 1 | 51431858001 | $39.06 | Shop at ECS Tuning | |||||
| 07 | Covering apron right | 1 | 51431858002 | $39.06 | Shop at ECS Tuning | |||||
| 08 | Recessed oval head sheet-metal screw | ST2,9X25 | 2 | 07119902428 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Clamp | 4 | 51441805831 | $1.56 | Shop at ECS Tuning | |||||
| 10 | Clamp | 6 | 51457680029 | $0.54 | ENDED | Shop at ECS Tuning | ||||
| 11 | Expanding nut | 3,9 | 4 | 51135680113 | $0.28 | Shop at ECS Tuning | ||||
| 12 | Hollow washer | 4 | 51211859979 | $0.40 | Shop at ECS Tuning | |||||
| 13 | Recessed oval head sheet-metal screw | ST4,2X16 | 4 | 07119902497 | $0.13 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Interior trim lateral?
- This technical diagram illustrates the Interior trim lateral within the Vehicle trim group for the 5 Series E12 528 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Sill strip front (Part #51471816723).
- Which models use the hardware listed in this Interior trim lateral?
- The hardware and components featured in the Interior trim lateral are specific to the 5 Series E12 528 produced during 1976. These technical specifications ensure that parts like the Sill strip front (51471816723) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Interior trim lateral assembly?
- Each item in the Interior trim lateral corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Sill strip front by locating its position on the schematic, which then links to the official BMW part number 51471816723 for the Vehicle trim section.
