Sound insulating front for BMW 7 Series E23 735i (1985)

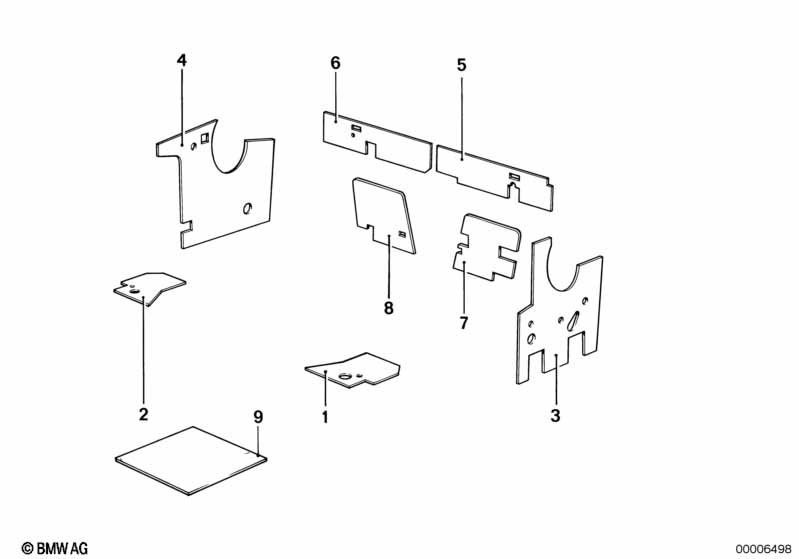

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound deadener | 1 | 51483905477 | Shop at ECS Tuning | ||||||
| 02 | Sound deadener | 1 | 51483905478 | Shop at ECS Tuning | ||||||
| 03 | Sound deadener | 1 | 51483908793 | Shop at ECS Tuning | ||||||
| 04 | Sound deadener | 1 | 51483908794 | Shop at ECS Tuning | ||||||
| 05 | Sound deadener | 1 | 51482900463 | Shop at ECS Tuning | ||||||
| 05 | Sound deadener | 1 | 51483905480 | ENDED | Shop at ECS Tuning | |||||
| 06 | Sound deadener | 1 | 51482900464 | Shop at ECS Tuning | ||||||
| 06 | Sound deadener | 1 | 51483905916 | ENDED | Shop at ECS Tuning | |||||
| 07 | Sound deadener | 1 | 51482900465 | Shop at ECS Tuning | ||||||
| 07 | Sound deadener | 1 | 51483905481 | ENDED | Shop at ECS Tuning | |||||
| 08 | Sound deadener | 1 | 51482900466 | Shop at ECS Tuning | ||||||
| 08 | Sound deadener | 1 | 51483905482 | ENDED | Shop at ECS Tuning | |||||
| 09 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
