Sound insulation for BMW 6 Series E24 630CS (1979)

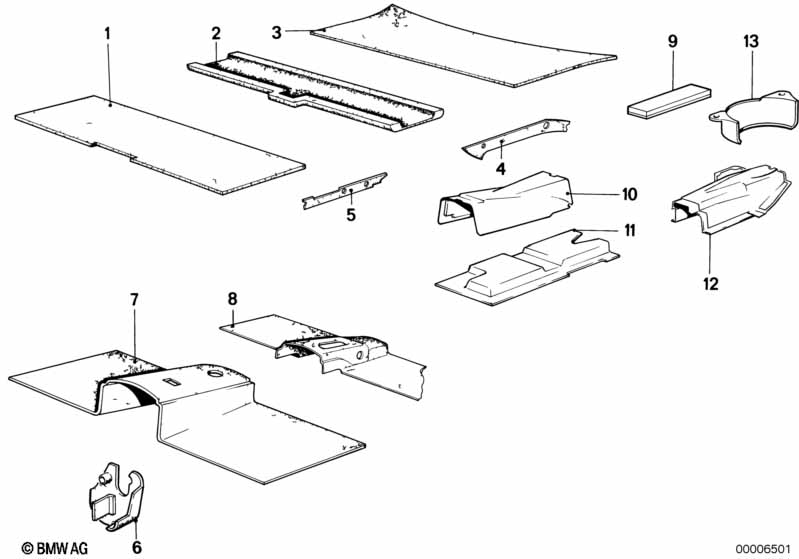

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating roof rear | 1 | 51481839472 | $8.78 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sound insulating roof center | 1 | 51481839471 | $35.15 | Shop at ECS Tuning | |||||
| 03 | Sound insulating roof rear | 1 | 51481839472 | $8.78 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sound insulating frame left | 1 | 51481839841 | ENDED | Shop at ECS Tuning | |||||
| 04 | Sound insulating frame right | 1 | 51481839842 | $39.06 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sound insulating frame left | 1 | 51481839839 | ENDED | Shop at ECS Tuning | |||||
| 05 | Sound insulating frame right | 1 | 51481839840 | ENDED | Shop at ECS Tuning | |||||
| 06 | Sound insulating pedal mecanism | 1 | 09/1980 | 51481859482 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
