Sound insulation for BMW 5 Series E28 M535i (1987)

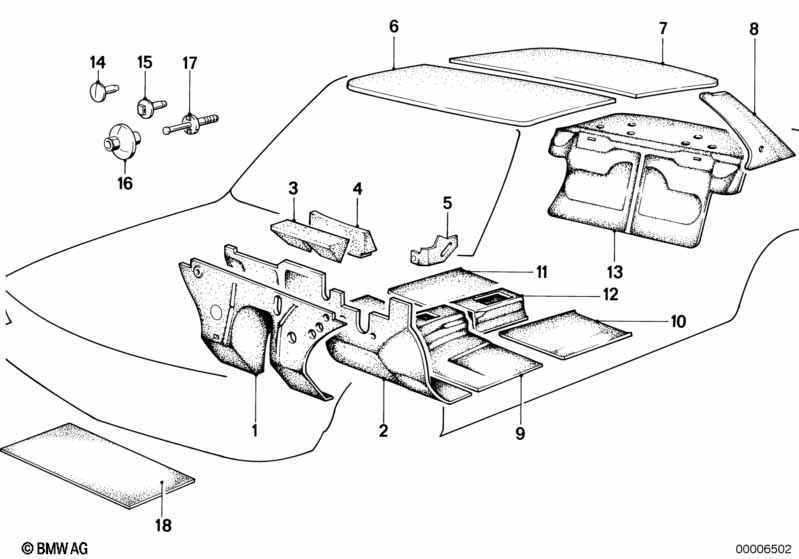

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating dash panel engine room | 1 | 51481889457 | $108.25 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sound insulating heater center | 1 | 51481904310 | $18.42 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sound insulating heater panel left | 1 | 51481900215 | $12.29 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sound insulating | 1 | 51481900216 | $12.29 | ENDED | Shop at ECS Tuning | ||||
| 06 | Sound insulating roof front | 1 | 51481885039 | $15.74 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound insulating roof rear | 1 | 51481883029 | $15.74 | ENDED | Shop at ECS Tuning | ||||
| 08 | Sound insulating rear window frame left | 1 | 51481815887 | $73.90 | Shop at ECS Tuning | |||||
| 08 | Sound insulating rear window frame right | 1 | 51481815888 | $73.90 | Shop at ECS Tuning | |||||
| 13 | Sound insulating front trunk panel | 1 | 51481873568 | ENDED | Shop at ECS Tuning | |||||
| 14 | Push-button | 1 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 15 | Push-button | X | 51481900729 | $0.50 | Shop at ECS Tuning | |||||
| 16 | Push-button | D=30MM;H=13MM | X | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 17 | Expanding rivet | 6 | 51481904142 | $0.57 | Shop at ECS Tuning | |||||
| 18 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
