Sound insulation for BMW 7 Series E23 733i (1981)

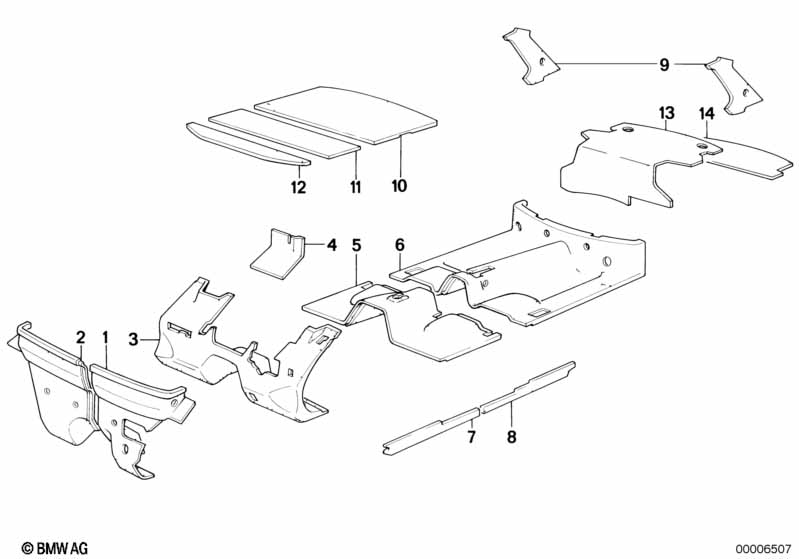

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulat.dash panel engine room L. | 1 | 51481868527 | ENDED | Shop at ECS Tuning | |||||
| 02 | Sound insulat.dash panel engine room R. | 1 | 51481868528 | $71.98 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sound insulation, bulkhead, interior | 1 | 09/1982 | 51481848993 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sound insulating dash panel | 1 | 51481932033 | $11.27 | ENDED | Shop at ECS Tuning | ||||
| 05 | Front floor panel sound insulation | 1 | 09/1979 | 09/1982 | 51481874756 | $154.04 | ENDED | Shop at ECS Tuning | ||
| 05 | Front floor panel sound insulation | 1 | 09/1979 | 09/1982 | 51481874756 | $154.04 | ENDED | Shop at ECS Tuning | ||
| 06 | Sound insulation floor rear | 1 | 09/1979 | 09/1982 | 51481874757 | $177.14 | ENDED | Shop at ECS Tuning | ||
| 06 | Sound insulation floor rear | 1 | 09/1979 | 09/1982 | 51481874757 | $177.14 | ENDED | Shop at ECS Tuning | ||
| 07 | Sound insulating side member left | 1 | 51481925831 | $12.13 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound insulating side member right | 1 | 51481925832 | $12.13 | ENDED | Shop at ECS Tuning | ||||
| 08 | Sound insulating side member left | 1 | 51481925833 | $12.13 | ENDED | Shop at ECS Tuning | ||||
| 08 | Sound insulating side member right | 1 | 51481925834 | $12.13 | ENDED | Shop at ECS Tuning | ||||
| 09 | Sound insulation rear window frame | 2 | 51481852947 | $25.67 | ENDED | Shop at ECS Tuning | ||||
| 13 | Sound insulating front trunk panel | 1 | 51481900716 | $45.96 | ENDED | Shop at ECS Tuning | ||||
| 14 | Sound insulating depositing panel | 1 | 51481900713 | $40.38 | ENDED | Shop at ECS Tuning |
