Sound insulation for BMW 5 Series E34 535i (1993)

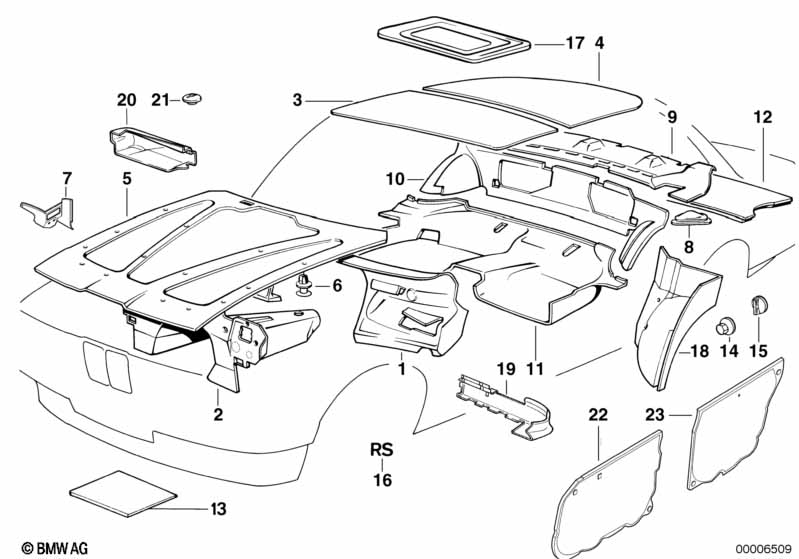

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upper sound insulating dash panel | 1 | 51481944396 | $110.48 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sound insulating dash panel engine room | 1 | 51481946186 | $110.48 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sound insulating roof front | 1 | 51481944790 | $11.83 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sound insulating roof rear | 1 | 51481944799 | $9.60 | Shop at ECS Tuning | |||||
| 05 | Sound insulating engine hood | 1 | 51488117668 | $110.07 | ENDED | Shop at ECS Tuning | ||||
| 06 | Expanding rivet | X | 51481938725 | $0.37 | Shop at ECS Tuning | |||||
| 06 | Expanding rivet | D=7,5MM | X | 09/1990 | 51481915964 | $0.43 | Shop at ECS Tuning | |||
| 07 | Sound insulat.dash panel engine room L. | 1 | 51481946197 | $45.65 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound insulat.dash panel engine room R. | 1 | 12/1992 | 51482254710 | $42.13 | ENDED | Shop at ECS Tuning | |||
| 08 | Sound insulating schock absorbermount | 2 | 51481969748 | $12.16 | Shop at ECS Tuning | |||||
| 09 | Sound insulation | 1 | 51488126660 | $58.18 | ENDED | Shop at ECS Tuning | ||||
| 10 | Sound insulating front trunk panel | 1 | 51481944837 | $73.48 | ENDED | Shop at ECS Tuning | ||||
| 11 | Sound insulation floor rear | 1 | 51481944838 | $110.48 | ENDED | Shop at ECS Tuning | ||||
| 13 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 16 | Sound insulation set | 1 | 51489059034 | $91.23 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COLUMN FRONT LEFT COLUMN FRONT RIGHT COLUMN CENTER LEFT COLUMN CENTER RIGHT COLUMN REAR LEFT COLUMN REAR RIGHT |
||||||||||
| 17 | Sound insulating cover | 1 | 54121964103 | $8.65 | Shop at ECS Tuning | |||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 18 | Sound insulating wheel housing rear left | 1 | 51481978861 | $110.48 | Shop at ECS Tuning | |||||
| 18 | Sound insulating wheel housing rear rig. | 1 | 51481978862 | $110.48 | ENDED | Shop at ECS Tuning | ||||
| 19 | Sound insulating left | 1 | 51488126653 | $58.18 | ENDED | Shop at ECS Tuning | ||||
| 20 | Sound insulating right | 1 | 51488126652 | $36.35 | Shop at ECS Tuning | |||||
| 21 | Push-button, gray | 7 | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
| 22 | Sound insulating door front left | 1 | 51488178111 | $12.34 | ENDED | Shop at ECS Tuning | ||||
| 22 | Sound insulating door front right | 1 | 51488178112 | $12.34 | ENDED | Shop at ECS Tuning | ||||
| 23 | Sound insulating door rear left | 1 | 51488178115 | $12.34 | ENDED | Shop at ECS Tuning | ||||
| 23 | Sound insulating door rear right | 1 | 51488178116 | $12.34 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
