Sound insulating front for BMW 5 Series E12 528i (1981)

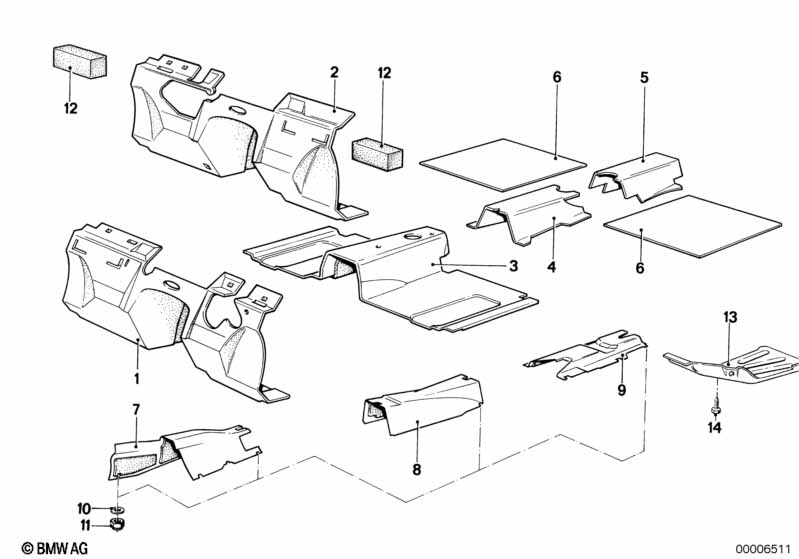

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO REAR COMPARTMENT HEATING | ||||||||||
| 02 | Sound insulation, bulkhead, interior | 1 | 51481849998 | ENDED | Shop at ECS Tuning | |||||
| 03 | Front floor panel sound insulation | 1 | 08/1979 | 51481879086 | $120.75 | ENDED | Shop at ECS Tuning | |||
| 05 | Sound insulating tunnel rear | 1 | 08/1979 | 51481881159 | $41.09 | ENDED | Shop at ECS Tuning | |||
| 06 | Sound insulation floor rear | 2 | 51481820229 | $24.19 | ENDED | Shop at ECS Tuning | ||||
| 09 | Heat insulation tunnel bottom | 1 | 08/1979 | 51481875998 | $173.39 | Shop at ECS Tuning | ||||
| 10 | Washer | X | 04/1977 | 51481840109 | $0.57 | ENDED | Shop at ECS Tuning | |||
| 11 | Stop nut | X | 04/1977 | 51481841216 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Damping piece for apron | 2 | 51481825917 | ENDED | Shop at ECS Tuning | |||||
| 13 | Heat resistant plate | 1 | 51481832850 | $18.75 | Shop at ECS Tuning | |||||
| 14 | Hex head screw | ST6,3X13-C-Z1 | 3 | 07119916960 | $0.24 | Shop at ECS Tuning | ||||
