Heat insulat./engine compartm.screening for BMW 7 Series E23 735i (1982)

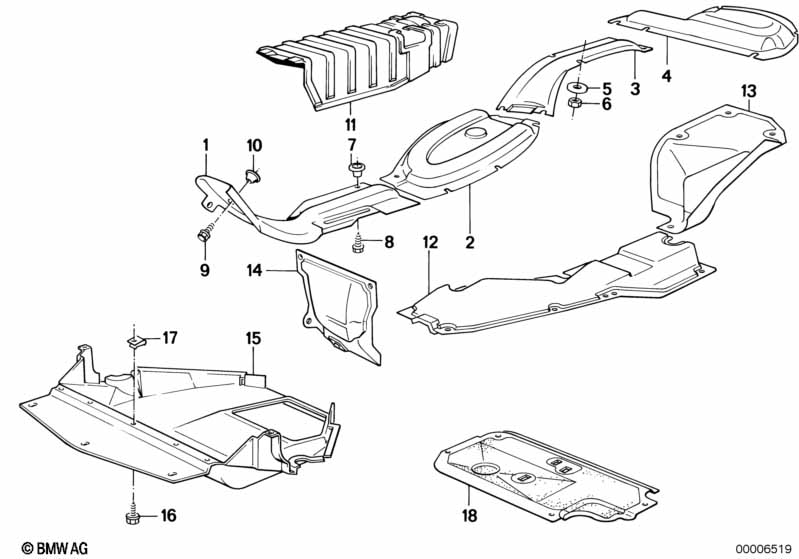

This Heat insulat./engine compartm.screening technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat resistant plate | 1 | 51481852852 | $16.63 | Shop at ECS Tuning | |||||
| 05 | Washer | X | 51481840109 | $0.57 | ENDED | Shop at ECS Tuning | ||||
| 06 | Stop nut | X | 51481841216 | $0.38 | Shop at ECS Tuning | |||||
| 09 | Hex head screw | ST6,3X13-C-Z1 | 4 | 07119916960 | $0.24 | Shop at ECS Tuning | ||||
| 11 | Heat resistant plate | 1 | 05/1980 | 51481862635 | $30.13 | ENDED | Shop at ECS Tuning | |||
| 12 | Heat insulation tunnel bottom | 1 | 08/1979 | 51481903918 | $104.58 | ENDED | Shop at ECS Tuning | |||
| 13 | Heat resistant plate | 1 | 08/1979 | 51481875454 | $92.36 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Heat insulat./engine compartm.screening?
- This technical diagram illustrates the Heat insulat./engine compartm.screening within the Vehicle trim group for the 7 Series E23 735i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Heat resistant plate (Part #51481852852).
- Which models use the hardware listed in this Heat insulat./engine compartm.screening?
- The hardware and components featured in the Heat insulat./engine compartm.screening are specific to the 7 Series E23 735i produced during 1982. These technical specifications ensure that parts like the Heat resistant plate (51481852852) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heat insulat./engine compartm.screening assembly?
- Each item in the Heat insulat./engine compartm.screening corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Heat resistant plate by locating its position on the schematic, which then links to the official BMW part number 51481852852 for the Vehicle trim section.
