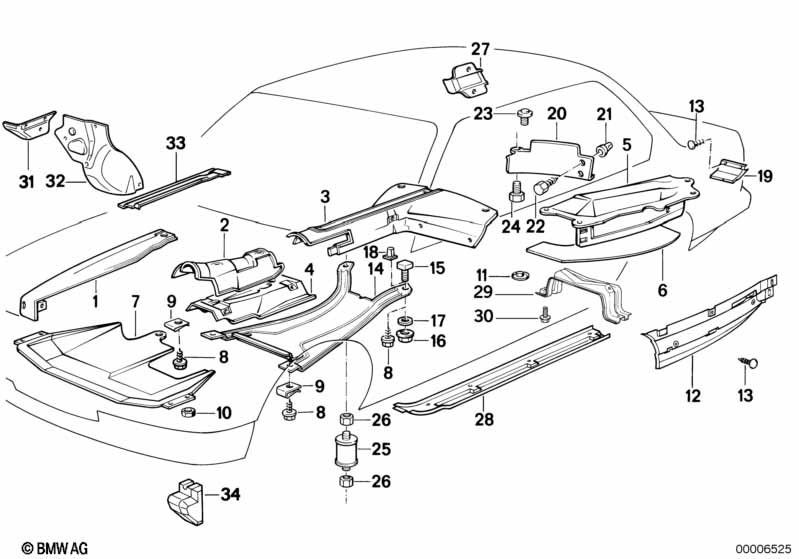

Heat insulat./engine compartm.screening for BMW 7 Series E32 730iL (1994)
This Heat insulat./engine compartm.screening technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat insulation right | 1 | 51481908402 | $92.18 | Shop at ECS Tuning | |||||
| 05 | Heat insulator rear silencer | 1 | 51488137981 | $112.56 | Shop at ECS Tuning | |||||
| 06 | Heat insulator floor panel trunk | 1 | 51481938143 | $56.50 | Shop at ECS Tuning | |||||
| 07 | Engine compartment screening | 1 | 51711938182 | $116.97 | Shop at ECS Tuning | |||||
| 08 | Hex head screw | ST6,3X19-C-Z2 | 2 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||

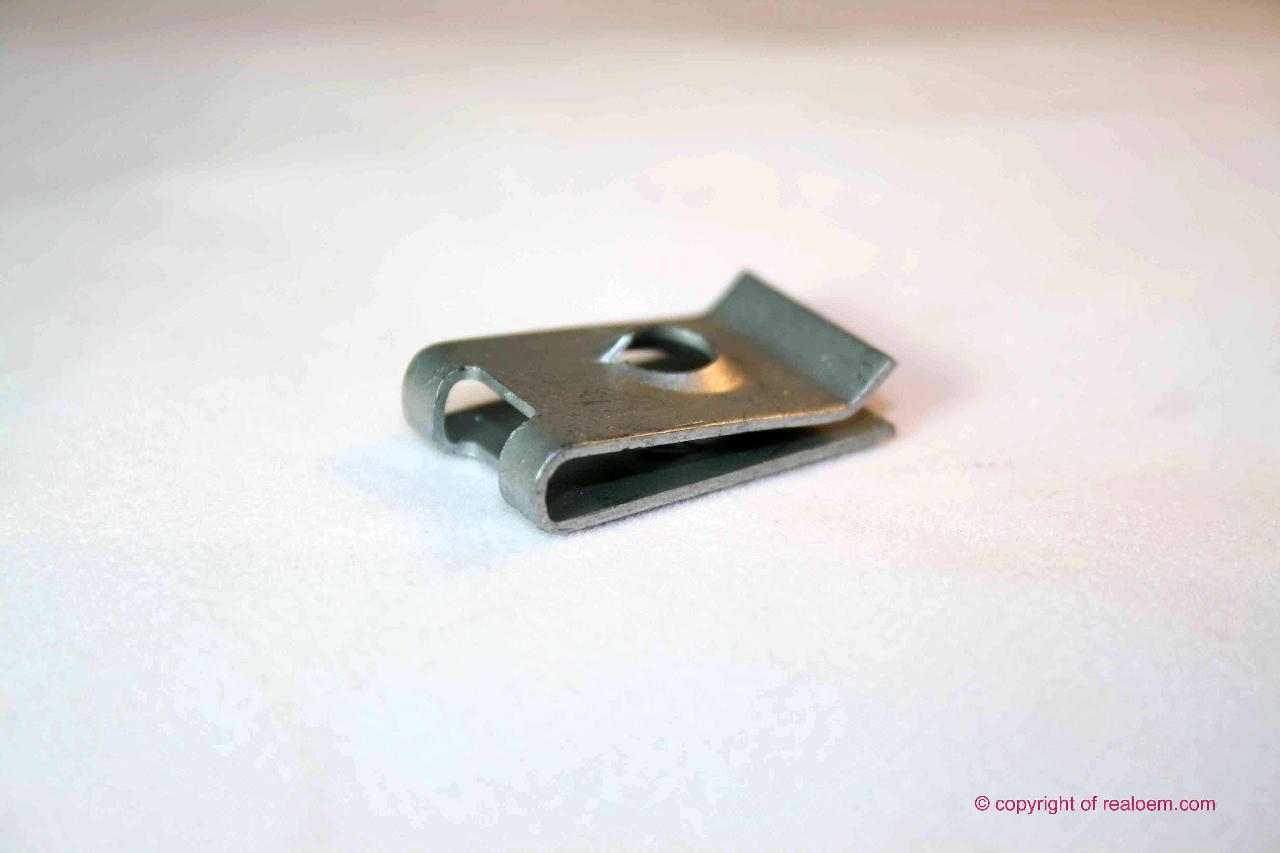

| 09 | Body nut | ST6,3-5 ZNS | 2 | 11/1987 | 04/1994 | 07129901668 | $0.44 | ENDED | Shop at ECS Tuning | |

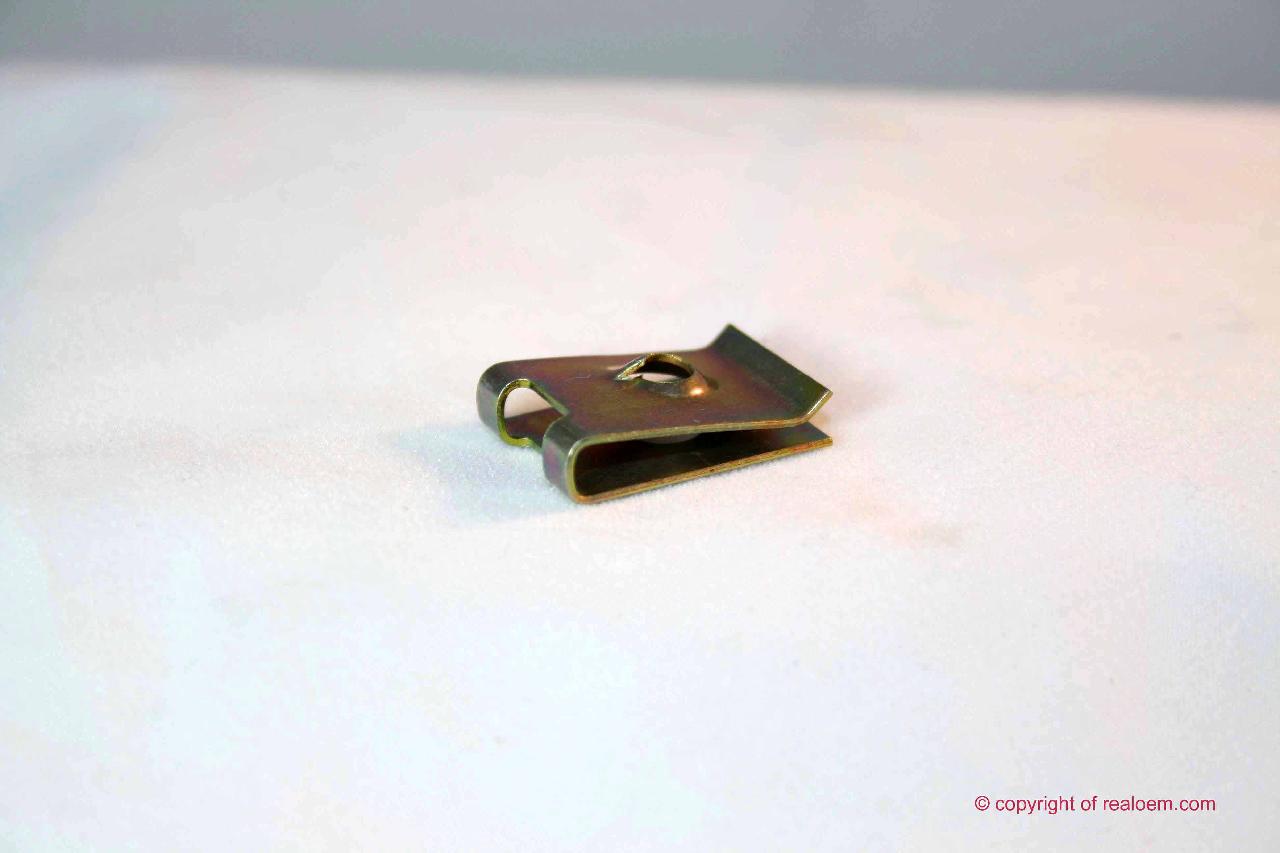

| 09 | Body nut | ST4,8-6 | 2 | 11/1987 | 04/1994 | 07129925711 | $0.20 | ENDED | Shop at ECS Tuning | |
| 10 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 11 | Body nut | D=30MM, ZNS3 | X | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 12 | Heat insulation | 1 | 51481964607 | $60.52 | Shop at ECS Tuning | |||||
| 13 | Plug, black | D=6,35MM | 1 | 03/1999 | 51488114499 | $0.56 | Shop at ECS Tuning | |||
| 13 | Clamp | 1 | 54121858966 | $0.32 | Shop at ECS Tuning | |||||
| 20 | Guard-fuel tank | 1 | 51711969290 | $95.55 | Shop at ECS Tuning | |||||
| 21 | Plug-in nut | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 22 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 22 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 23 | Plug | 1 | 61661369424 | $0.33 | Shop at ECS Tuning | |||||
| 24 | Hex bolt with washer | M10X16-Z3 | 1 | 07119913948 | $0.65 | Shop at ECS Tuning | ||||
| 25 | Rubber Mounting | 1 | 13621359216 | $10.80 | ENDED | Shop at ECS Tuning | ||||
| 26 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 27 | Heat insulation, left | 1 | 63311381825 | $3.95 | Shop at ECS Tuning | |||||
| 27 | Heat insulation right | 1 | 63311381826 | $3.68 | Shop at ECS Tuning | |||||
| 28 | Heat resistant plate | SERVICE | 1 | 63121388920 | $83.68 | ENDED | Shop at ECS Tuning | |||
| 32 | Heat resistant plate | 1 | 51488181770 | $34.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
