Heat insulat./engine compartm.screening for BMW 7 Series E23 735i (1985)

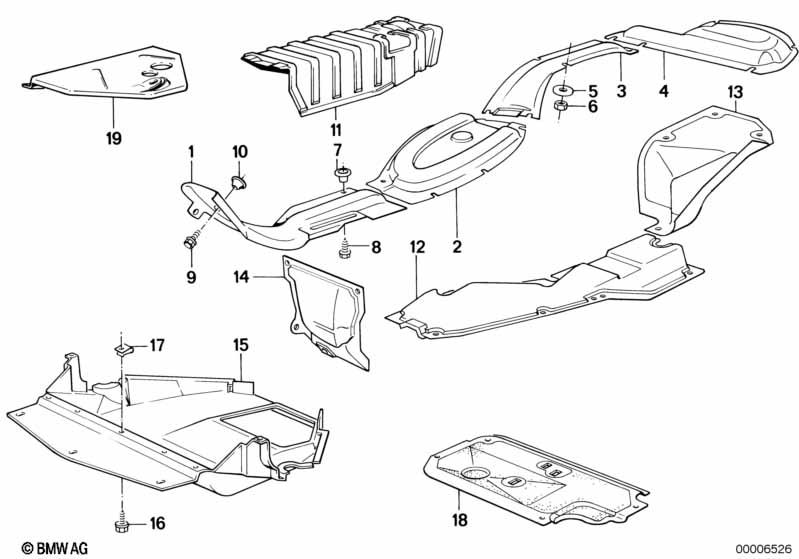

This Heat insulat./engine compartm.screening technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat resistant plate | 1 | 51483905470 | Shop at ECS Tuning | ||||||
| 02 | Heat resistant plate | 1 | 51481858644 | $107.69 | ENDED | Shop at ECS Tuning | ||||
| 03 | Heat resistant plate | 1 | 51481857140 | $106.86 | ENDED | Shop at ECS Tuning | ||||
| 04 | Heat resistant plate | 1 | 51481858955 | $155.12 | ENDED | Shop at ECS Tuning | ||||
| 05 | Washer | X | 51481840109 | $0.57 | ENDED | Shop at ECS Tuning | ||||
| 06 | Stop nut | X | 51481841216 | $0.38 | Shop at ECS Tuning | |||||
| 07 | Body nut | ST6,3-2-ZNS3 | 2 | 07129904232 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 8 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST6,3X13-C-Z1 | 4 | 07119916960 | $0.24 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST6,3-1-ZNS3 | 3 | 07129904231 | Shop at ECS Tuning | |||||
| 11 | Heat resistant plate | 1 | 01/1981 | 51481862635 | $30.13 | ENDED | Shop at ECS Tuning | |||
| 12 | Heat insulation tunnel bottom | 1 | 51481903918 | $104.58 | ENDED | Shop at ECS Tuning | ||||
| 12 | Heat insulation tunnel bottom | 1 | 51482909083 | Shop at ECS Tuning | ||||||
| 13 | Heat resistant plate | 1 | 51481875454 | $92.36 | ENDED | Shop at ECS Tuning | ||||
| 15 | Engine compartment screening | 1 | 51711905394 | $66.12 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex head screw | ST6,3X22-C-Z1 | 7 | 07119916969 | $0.29 | ENDED | Shop at ECS Tuning | |||
| 17 | Prestol-cage | ST6,3-ZNS | 2 | 07129901748 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 17 | Body nut | ST 6,3 - 9 | 2 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Body nut | ST6,3-1-ZNS3 | 5 | 07129904231 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
