Shielding, engine compartment/air ducts for BMW 5 Series E34 525tds (1995)

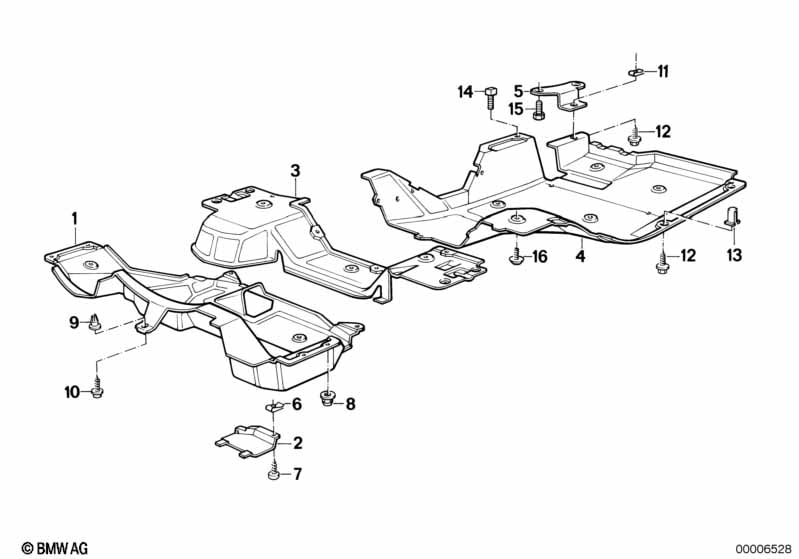

This Shielding, engine compartment/air ducts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine compartment screening | 1 | 51718126261 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Engine compartment screening | 1 | 51718126286 | $140.37 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover | 1 | 51711944860 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Cover | 1 | 51718107009 | Shop at ECS Tuning | ||||||
| 03 | Trim panel lower | 1 | 51718126263 | $96.53 | ENDED | Shop at ECS Tuning | ||||
| 04 | Trim panel lower | 1 | 51718126265 | ENDED | Shop at ECS Tuning | |||||
| 05 | Support | 1 | 51718126269 | ENDED | Shop at ECS Tuning | |||||
| 06 | Body nut | ST4,2-3-ZNS3 | 2 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,2X16-Z2 | 2 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 09 | Prestol-cage | ST4,2 | 1 | 07129925754 | $0.19 | Shop at ECS Tuning | ||||
| 10 | Fillister head self-tapping screw | ST4,2X13-Z2 | 1 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Body nut | ST6,3-4 ZNS3 | 2 | 07147144276 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Hex head screw | ST6,3X19-C-Z2 | 9 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 13 | Expanding nut | ST 6.3 | 5 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 14 | Square headed bolt | M8X18 | 1 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M8-8-ZNS3 | 1 | 06/1996 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 16 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 17 | Hex bolt with washer | M8X22-8.8-ZNS3 | 2 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 18 | Body nut | ST 4,8-6-ZNS3 | 4 | 07129904225 | $0.16 | Shop at ECS Tuning | ||||
| 19 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
