Air duct for BMW 6 Series E24 630CSi (1977)

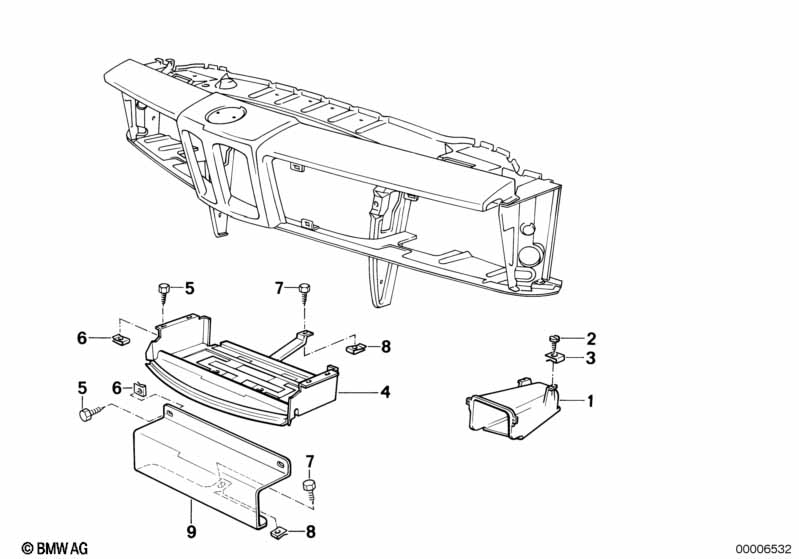

This Air duct technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air channel left | 1 | 51711822439 | $27.85 | Shop at ECS Tuning | |||||
| 01 | Air channel right | 1 | 51711822440 | $27.85 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Air channel right | 1 | 51711836102 | $43.28 | Shop at ECS Tuning | |||||
| 02 | Fillister head self-tapping screw | ST4,2X16-Z2 | 1 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Clamp | 1 | 51711920827 | $0.93 | ENDED | Shop at ECS Tuning | ||||
| 04 | Air duct | 1 | 51712230357 | $50.95 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST4,8X13-C-U1-Z | 4 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST6,3X13-C-Z1 | 1 | 07119916960 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Body nut | ST6,3-1-ZNS3 | 1 | 07129904231 | Shop at ECS Tuning | |||||
| 09 | Air duct | 1 | 51711925152 | $48.49 | Shop at ECS Tuning | |||||
