Air duct for BMW 3 Series E30 325i (1989)

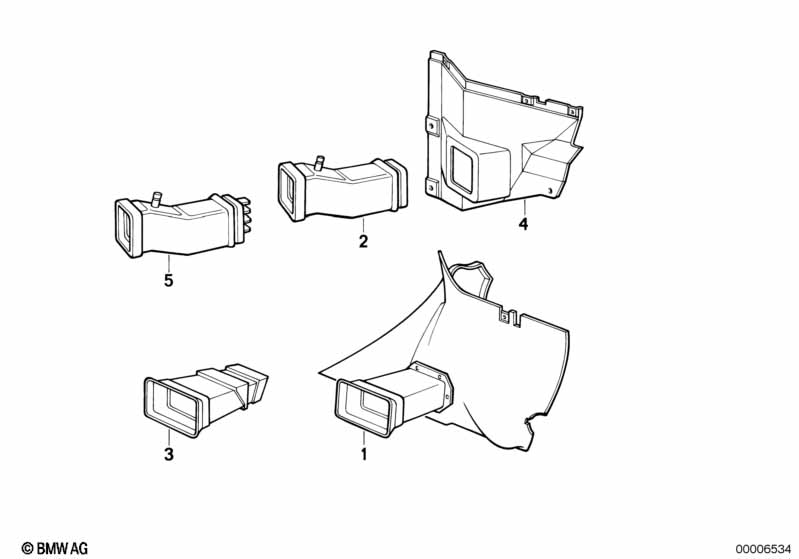

This Air duct technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Air channel left | M TECHNIC | 1 | 09/1987 | 51712238867 | $37.07 | Shop at ECS Tuning | |||
| 02 | Air channel right | M TECHNIC | 1 | 09/1987 | 51712238868 | $36.81 | Shop at ECS Tuning | |||
| 03 | Air channel left | M TECHNIC | 1 | 51711942967 | $32.78 | Shop at ECS Tuning | ||||
| 03 | Air channel right | M TECHNIC | 1 | 51711942968 | $32.78 | Shop at ECS Tuning | ||||
| 04 | Air duct, left | 1 | 09/1987 | 51711962767 | $9.31 | Shop at ECS Tuning | ||||
| 04 | Air duct, right | 1 | 09/1987 | 51711962768 | $9.31 | Shop at ECS Tuning | ||||
| 05 | Air duct, left | 1 | 09/1987 | 51711979139 | $27.50 | Shop at ECS Tuning | ||||
| 05 | Air duct, right | 1 | 09/1987 | 51711979140 | $27.50 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Air duct?
- This technical diagram illustrates the Air duct within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Air channel left (Part #51712238867).
- Which models use the hardware listed in this Air duct?
- The hardware and components featured in the Air duct are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Air channel left (51712238867) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air duct assembly?
- Each item in the Air duct corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Air channel left by locating its position on the schematic, which then links to the official BMW part number 51712238867 for the Vehicle trim section.
