Air duct for BMW 3 Series E30 325i (1989)

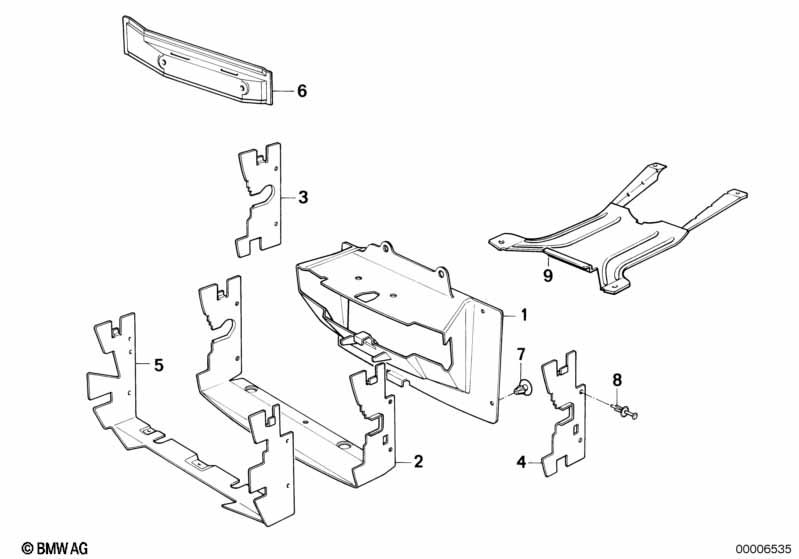

This Air duct technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Air intake tube left | 1 | 09/1987 | 51711966577 | $16.35 | Shop at ECS Tuning | ||||
| 04 | Air intake tube right | 1 | 09/1987 | 51711966578 | $16.35 | Shop at ECS Tuning | ||||
| 07 | Clamp | X | 09/1987 | 51711916039 | $0.35 | Shop at ECS Tuning | ||||
| 07 | Clamp | X | 09/1987 | 51711955459 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | D=7,5MM | X | 09/1987 | 51481915964 | $0.43 | Shop at ECS Tuning | |||
| 09 | Air duct | 1 | 09/1987 | 51711976719 | $44.54 | ENDED | Shop at ECS Tuning |
