Curtain for BMW 7 Series E32 740i (1994)

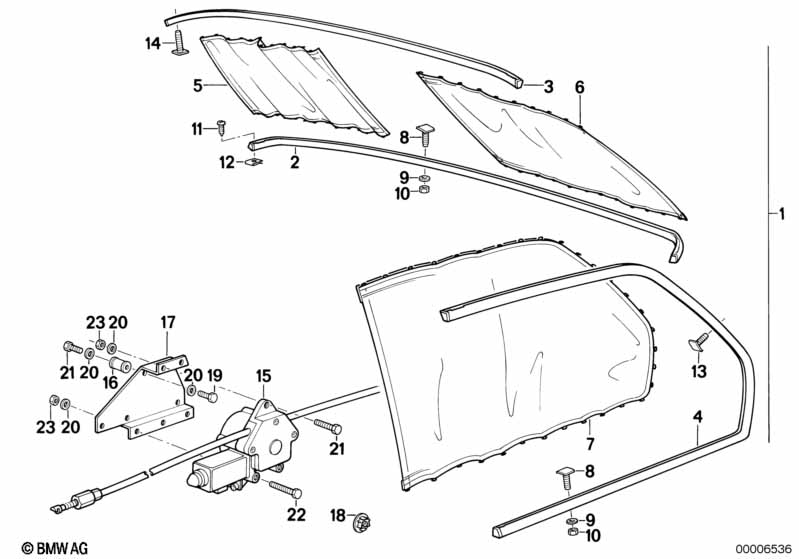

This Curtain technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Curtain rail | 1 | 51128111218 | ENDED | Shop at ECS Tuning | |||||
| 03 | Curtain rail | 1 | 51128111217 | ENDED | Shop at ECS Tuning | |||||
| 04 | Curtain rail door left | 1 | 51168111209 | ENDED | Shop at ECS Tuning | |||||
| 04 | Curtain rail door right | 1 | 51168111210 | ENDED | Shop at ECS Tuning | |||||
| 05 | Curtain right | 1 | 51128111208 | ENDED | Shop at ECS Tuning | |||||
| 06 | Curtain left | 1 | 51128111207 | ENDED | Shop at ECS Tuning | |||||
| 07 | Curtain left | 1 | 51168111213 | ENDED | Shop at ECS Tuning | |||||
| 07 | Curtain right | 1 | 51168111214 | ENDED | Shop at ECS Tuning | |||||
| 08 | Screw | M4X15 | 6 | 51168101001 | ENDED | Shop at ECS Tuning | ||||
| 09 | Washer | 9X4,3X0,8-200HV | 6 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M4-A2-70 | 6 | 07129906098 | $1.00 | Shop at ECS Tuning | ||||
| 11 | Fillister head self-tapping screw | ST2,9X19 | 2 | 51468101160 | ENDED | Shop at ECS Tuning | ||||
| 12 | Body nut | ST2,9-1 | X | 07129901631 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clamp | 8 | 51168105216 | ENDED | Shop at ECS Tuning | |||||
| 14 | Clamp | 6 | 51468101269 | $0.26 | ENDED | Shop at ECS Tuning | ||||
| 15 | Drive curtain door right | 1 | 67651388693 | ENDED | Shop at ECS Tuning | |||||
| 15 | Drive curtain rear right | 1 | 67651388815 | ENDED | Shop at ECS Tuning | |||||
| 15 | Drive curtain door left | 1 | 67651390261 | ENDED | Shop at ECS Tuning | |||||
| 15 | Drive curtain rear left | 1 | 67651390262 | ENDED | Shop at ECS Tuning | |||||
| 16 | Suspension | 25X20MM | 3 | 67651390266 | ENDED | Shop at ECS Tuning | ||||
| 16 | Suspension | 15X15MM | 8 | 67651390267 | ENDED | Shop at ECS Tuning | ||||
| 17 | Holder | 2 | 67651388374 | ENDED | Shop at ECS Tuning | |||||
| 18 | Blind plug | D=18.5MM | 2 | 61131379865 | $2.65 | ENDED | Shop at ECS Tuning | |||
| 19 | Hex bolt | M4X6 | X | 07119913071 | ENDED | Shop at ECS Tuning | ||||
| 20 | Washer | 4-200 HV-ZNS3 | X | 07119904207 | Shop at ECS Tuning | |||||
| 21 | Hex bolt | M4X12 | 4 | 07119913084 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 22 | Hex bolt | M4X25 8.8ZN | 3 | 07119913097 | $1.59 | ENDED | Shop at ECS Tuning | |||
| 23 | Hex nut | M4-A2-70 | 5 | 07119922854 | Shop at ECS Tuning | |||||
| 24 | Hex bolt | M4X12 | 3 | 07119913084 | $0.11 | ENDED | Shop at ECS Tuning |
