Cover material, running meter for BMW 3 Series E30 325i (1989)

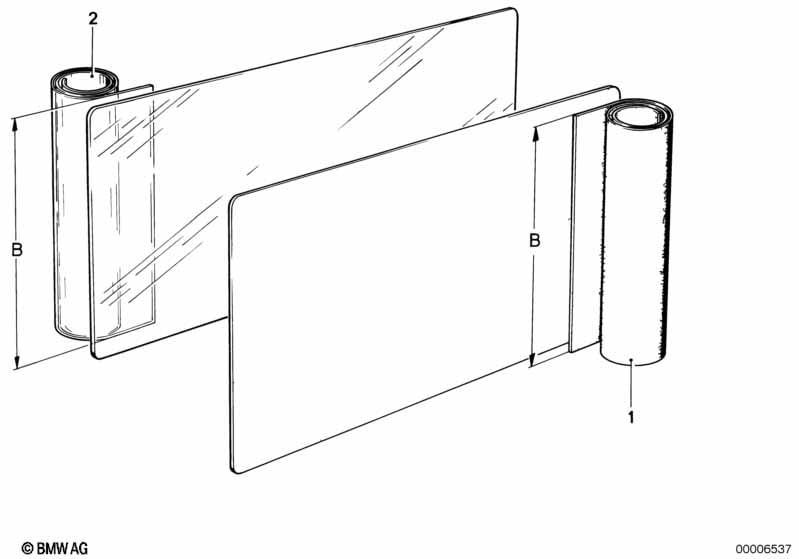

This Cover material, running meter technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| B = 1300mm | ||||||||||
| 01 | Upholstery vinyl indigo | 0191/0218/0271 | X | 09/1987 | 51861949784 | $45.76 | ENDED | Shop at ECS Tuning | ||
| 01 | Vinyl lining smooth | SILBER | X | 09/1987 | 51921971950 | $44.64 | ENDED | Shop at ECS Tuning | ||
| 01 | Vinyl lining smooth | NATUR | X | 09/1987 | 51921971952 | $44.64 | ENDED | Shop at ECS Tuning | ||
| 01 | Vinyl lining smooth | HAVANNA | X | 09/1987 | 51921971953 | $44.64 | ENDED | Shop at ECS Tuning | ||
| 01 | Vinyl lining smooth | KARMESINROT | X | 09/1988 | 51921925411 | $102.95 | ENDED | Shop at ECS Tuning | ||
| 02 | Trimming foil | B=1520MM | X | 51951924961 | $40.98 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Cover material, running meter?
- This technical diagram illustrates the Cover material, running meter within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Sound deadener (Part #51488165271).
- Which models use the hardware listed in this Cover material, running meter?
- The hardware and components featured in the Cover material, running meter are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Sound deadener (51488165271) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cover material, running meter assembly?
- Each item in the Cover material, running meter corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Sound deadener by locating its position on the schematic, which then links to the official BMW part number 51488165271 for the Vehicle trim section.
