Air duct for BMW 3 Series E30 316i (1994)

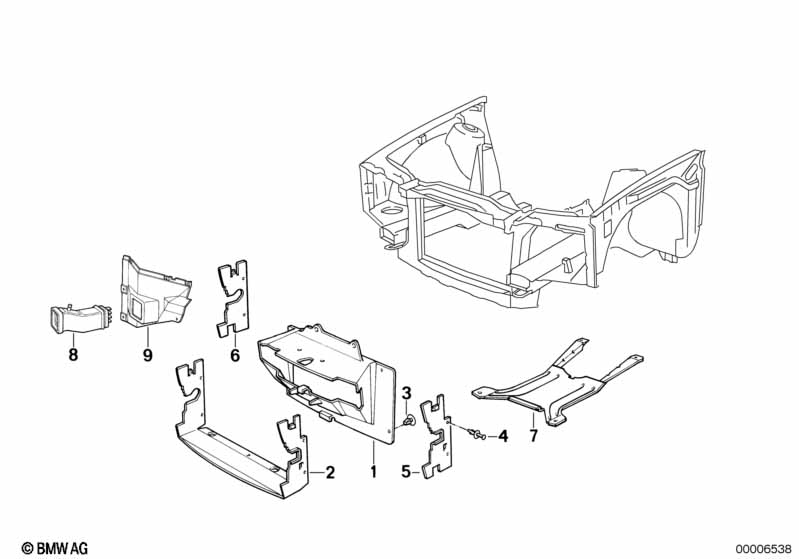

This Air duct technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air intake tube | 1 | 51711971956 | $44.54 | Shop at ECS Tuning | |||||
| 03 | Clamp | X | 51711916039 | $0.35 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | D=7,5MM | X | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 08 | Air duct, left | 1 | 51711979139 | $27.50 | Shop at ECS Tuning | |||||
| 08 | Air duct, right | 1 | 51711979140 | $27.50 | Shop at ECS Tuning | |||||
| 09 | Air duct, left | 1 | 51711962767 | $9.31 | Shop at ECS Tuning | |||||
| 09 | Air duct, right | 1 | 51711962768 | $9.31 | Shop at ECS Tuning |
