Insert mats velours for BMW 5 Series E12 528i (1981)

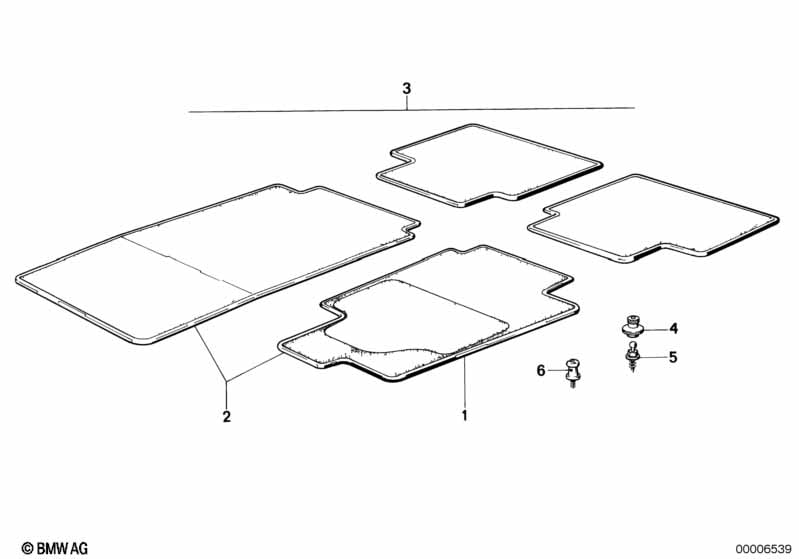

This Insert mats velours technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Set rubber mats front | GRAU | 1 | 08/1979 | 51471915712 | ENDED | Shop at ECS Tuning | |||
| 02 | Set rubber mats front | BRAUN | 1 | 08/1979 | 51471915713 | ENDED | Shop at ECS Tuning | |||
| 03 | Set of floor mats Velours | DUNKELGRAU | 1 | 08/1979 | 51471879620 | $173.82 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528i Insert mats velours?
- This technical diagram illustrates the Insert mats velours within the Vehicle trim group for the 5 Series E12 528i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Set rubber mats front (Part #51471915712).
- Which models use the hardware listed in this Insert mats velours?
- The hardware and components featured in the Insert mats velours are specific to the 5 Series E12 528i produced during 1981. These technical specifications ensure that parts like the Set rubber mats front (51471915712) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Insert mats velours assembly?
- Each item in the Insert mats velours corresponds to the numbered list below the illustration. For the 5 Series E12 528i, you can identify the Set rubber mats front by locating its position on the schematic, which then links to the official BMW part number 51471915712 for the Vehicle trim section.
