Foot rest for BMW 3 Series E30 325i (1989)

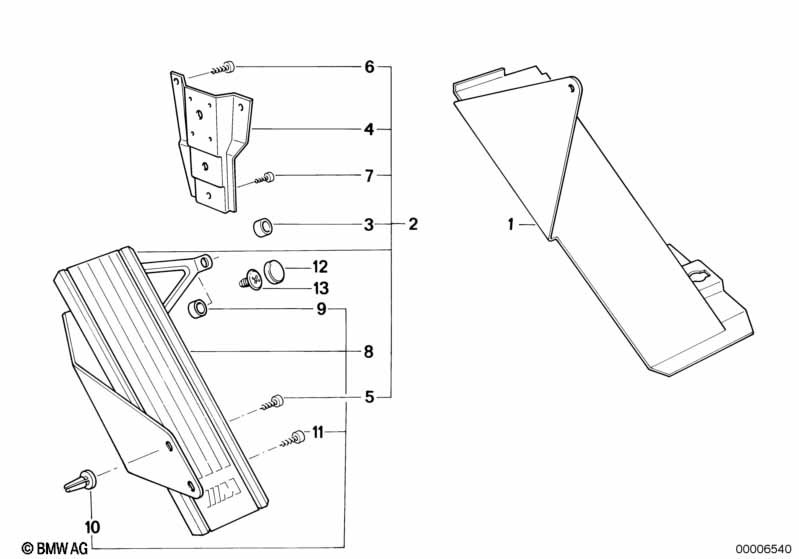

This Foot rest technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Spacer bush | 1 | 51472239825 | $0.63 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket, control unit | 1 | 61311370734 | $4.16 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | ST4,8X13-Z2 | 2 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw | ST4,8X9,5-C-H-Z | 2 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST2,9X6,5 | 2 | 07119907906 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Foot rest?
- This technical diagram illustrates the Foot rest within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Spacer bush (Part #51472239825).
- Which models use the hardware listed in this Foot rest?
- The hardware and components featured in the Foot rest are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Spacer bush (51472239825) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Foot rest assembly?
- Each item in the Foot rest corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Spacer bush by locating its position on the schematic, which then links to the official BMW part number 51472239825 for the Vehicle trim section.
