Floor covering for BMW 3 Series E30 325i (1989)

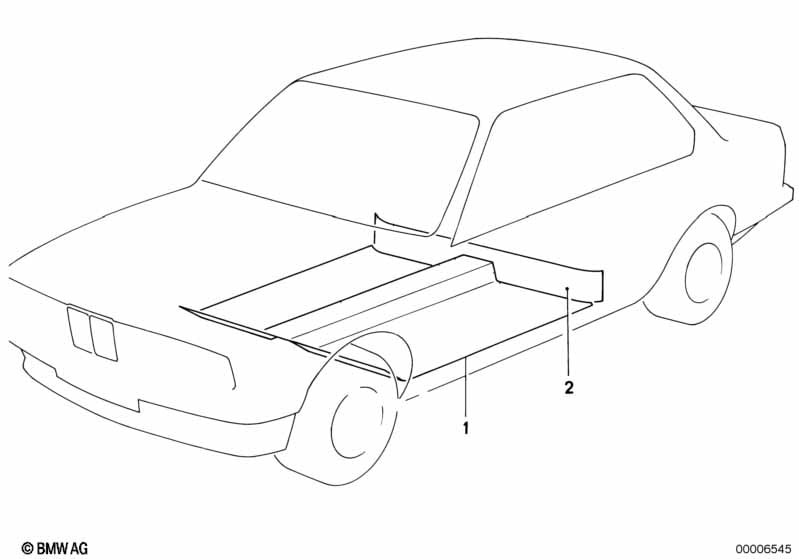

This Floor covering technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor covering w.sound insulation | KARMESINROT | 1 | 51478112263 | ENDED | Shop at ECS Tuning | ||||
| 01 | Floor covering w.sound insulation | ANTHRAZIT | 1 | 09/1985 | 51471933411 | $861.59 | Shop at ECS Tuning | |||
| 01 | Floor covering w.sound insulation | SCHIEFER | 1 | 09/1987 | 51471976665 | $606.32 | ENDED | Shop at ECS Tuning | ||
| 01 | Floor covering w.sound insulation | HAVANNA | 1 | 09/1987 | 51471976667 | $560.79 | ENDED | Shop at ECS Tuning | ||
| 01 | Floor covering w.sound insulation | NATUR | 1 | 09/1987 | 51471976668 | $560.79 | ENDED | Shop at ECS Tuning | ||
| 01 | Floor covering w.sound insulation | CARDINALROT | 1 | 09/1987 | 51471976669 | $848.84 | ENDED | Shop at ECS Tuning | ||
| 01 | Floor covering w.sound insulation | INDIGO | 1 | 09/1987 | 51478121393 | $435.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering seat carrier | KARMESINROT | 1 | 51478112273 | $88.16 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering seat carrier | SCHIEFER | 1 | 09/1987 | 51471976630 | $70.56 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering seat carrier | INDIGO | 1 | 09/1987 | 51471976631 | $88.16 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering seat carrier | HAVANNA | 1 | 09/1987 | 51471976632 | $223.20 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering seat carrier | NATUR | 1 | 09/1987 | 51471976633 | $103.51 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering seat carrier | CARDINALROT | 1 | 09/1987 | 51471976634 | $88.16 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Floor covering?
- This technical diagram illustrates the Floor covering within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Floor covering w.sound insulation (Part #51478112263).
- Which models use the hardware listed in this Floor covering?
- The hardware and components featured in the Floor covering are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Floor covering w.sound insulation (51478112263) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor covering assembly?
- Each item in the Floor covering corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Floor covering w.sound insulation by locating its position on the schematic, which then links to the official BMW part number 51478112263 for the Vehicle trim section.
